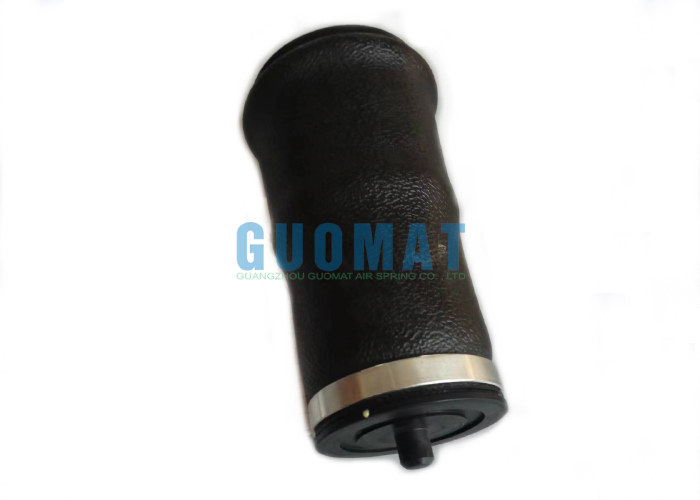

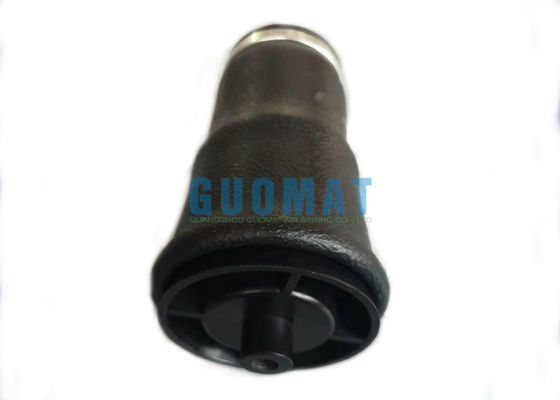

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	G7059

پرداخت:

مقدار حداقل تعداد سفارش:	6 قطعه
قیمت:	$39.9/pc-$49.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T ، Western Union ، L/C ، PayPal ، سایر مذاکره
قابلیت ارائه:	10000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

نام مورد:	فنر هوا کابین	مادی:	پلاستیکی
موقعیت:	عقب	ضمانت:	1 سال
بسته بندی کردن:	کارتن / پالت	عمل:	نصب آسان
قابل اجرا برای:	کامیون	نوع مورد:	صندلی ، نیمکت و دسترسی
برجسته کردن:	Firestone truck cab air spring,cab air shock absorber replacement,Firestone W02-358-7059 air shock , cab air shock absorber replacement , Firestone W02-358-7059 air shock

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

Product Specifications

Item	Cab Air Shock Absorber
Model Number	G7059
Size	Standard Size
Car Make	For Truck
Position	Rear

OEM Numbers

FIRESTONE W02-358-7059
FIRESTONE W02 358 7059
FIRESTONE W023587059
FIRESTONE Wo2-358-7059
FIRESTONE Wo2 358 7059
FIRESTONE Wo23587059
W02-358-7059 ABSZ70-7059 00125724 7059 32466301 32803501 W02N190759

Technical Data

Maximum Height: 11.7"
Minimum Height: 3.66"
Outer Diameter: 2.9"
Top Cover Diameter: 2.84"
Bottom Piston Diameter: 3.20"
Bottom Piston Height: 3.13"
Air Fitting: 1/8NPT

Installation Instructions

Step 1: Lift & Secure the Cab Use the truck's cab tilt mechanism to fully raise the cab.

THIS IS NON-NEGOTIABLE: Immediately place sturdy support stands or solid wood blocks under the cab's main frame. Never rely solely on the hydraulic lift cylinder. This is your primary safety backup.

Step 2: Replace the Air Spring Release air pressure: Locate and disconnect the air line from the old air spring. You may hear a hiss as pressure escapes.
Remove the old unit: Unbolt the top and bottom mounting bolts. Some wiggling or gentle prying might be needed to free it.
Install the new one: Position the new air spring. Hand-tighten the new mounting bolts to ensure they thread correctly.
Reconnect: Push the air line onto the new air spring's fitting until it clicks and locks securely.

Step 3: Test for Leaks & Final Check Carefully remove the support stands and slowly lower the cab.
Start the engine to inflate the air springs. The cab should rise to its normal height.
Leak Test: Mix soap and water and spray it on the air line connection and the air spring itself. Look for bubbles, which indicate a leak that must be fixed.
Go for a short test drive to ensure stability and listen for unusual noises.
