2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring

2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring

  • 2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
  • 2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
  • 2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
  • 2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
جزئیات محصول:
محل منبع: گوانگدونگ ، چین
نام تجاری: GUOMAT
گواهی: ISO/TS16949:2009
شماره مدل: 2B6947
پرداخت:
مقدار حداقل تعداد سفارش: 6 عدد
قیمت: $59.9-69.9/pc
جزئیات بسته بندی: جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل: 2-8 روز کاری
شرایط پرداخت: L/C ، T/T ، Western Union
قابلیت ارائه: 1000 قطعه در هفته
مخاطب
توضیحات محصول جزئیات
ماده بهاری: لاستیک ضمانت: 1 سال
ویژگی محصول: نصب درجا نوع: گاز پر از گاز
موقعیت: جهانی گودایر: 2B9-255
مشاجره: FD 200-25 428 سکته: 3.8 ''-12.2 ''
برجسته کردن:

Goodyear suspension rubber bellows,Firestone air spring replacement,W01-358-6947 air spring

,

Firestone air spring replacement

,

W01-358-6947 air spring

2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring
Product Specifications
Part Number 2B 6947
OEM Number Goodyear 2B9-255
Working temperature -40°C bis +70°C
Failure testing ≥3 millions
Top Cover Plate Diameter 6.4''
Bottom Cover Plate Diameter 6.4''
Gas Hole / Air inlet 1/4NPTF
The Working Stroke MAX 12.2'' to MIN 3.8''
Screw Center Distance of Top Cover Plate 3.5''
Screw Center Distance of Bottom Cover Plate 3.5''
Screw and Air inlet Distance of Top Cover Plate 1.75''
OE Manufacturer Numbers
  • GOODYEAR 2B9-255
  • GOODYEAR 2B 9-255
  • GOODYEAR 2B9 255
  • GOODYEAR 2B9255
  • GOODYEAR 578-92-3-206
  • GOODYEAR 578 92 3 206
  • GOODYEAR 578923206
  • AUTOMANN ABSP2B12RA-6947
  • CONTITECH 64551
  • CONTITECH FD200-25 428
  • CONTITECH FD 200-25 428
  • CONTITECH FD 200-25428
  • DAYTON 354-6947
  • FIRESTONE 6947
  • FIRESTONE WO1-358-6947
  • FIRESTONE WO1 358 6947
  • FIRESTONE WO13586947
  • FIRESTONE W01-358-6947
  • FIRESTONE W01 358 6947
  • FIRESTONE W013586947
  • HENDRICKSON B-8701
  • LOAD GUARD SC2127
  • RIDEWELL 1003586947C
  • TRIANGE 4425
  • TRP AS69470
Functions of Suspension Air Springs

Suspension air springs are the core elastic components of air suspension systems. They replace traditional steel coil springs and utilize the reaction force of compressed air within a rubber airbag to support the vehicle's weight and absorb road impacts. Their most basic functions are to provide cushioning, vibration reduction, and load-bearing, ensuring that vibrations between the wheels and the vehicle body are effectively absorbed when driving on various road surfaces, thereby providing a smooth and comfortable ride for the driver and passengers.

The most important function of air springs is their adjustable stiffness (softness or firmness) and vehicle height. Unlike steel springs, which have a fixed stiffness, air springs have a nonlinearly variable stiffness. The stiffness of the suspension can be adjusted by dynamically adjusting the air volume within the airbag. During aggressive driving or high-speed driving, the system can increase air pressure to stiffen the suspension for better handling stability and roll support. For everyday driving where comfort is paramount, the suspension can be softened to maximize bump absorption. This adjustable capability also allows the vehicle to raise or lower ground clearance in real time based on varying road conditions and driving needs, for example, lowering it at high speeds to reduce wind resistance, or raising it to enhance maneuverability on unpaved roads.

Furthermore, air springs offer excellent load retention. Whether the vehicle is unladen or fully loaded, the air suspension system automatically maintains the vehicle's height at a preset level through inflation and deflation. This is particularly important for heavy-duty trucks, buses, and frequently loaded passenger cars. This function not only maintains the vehicle's apparent levelness but also helps protect vehicle components and delicate cargo, minimizing the degradation of handling and braking performance caused by load fluctuations, thereby extending the life of the vehicle and tires and reducing maintenance costs.

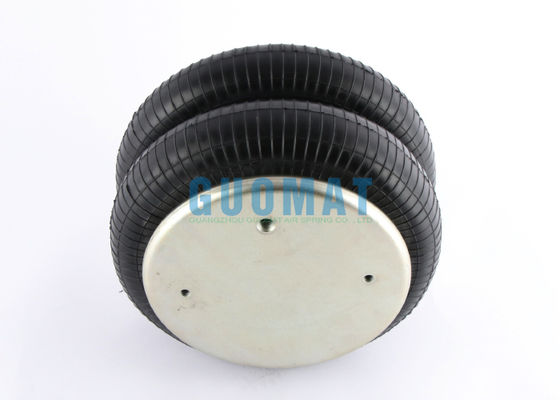

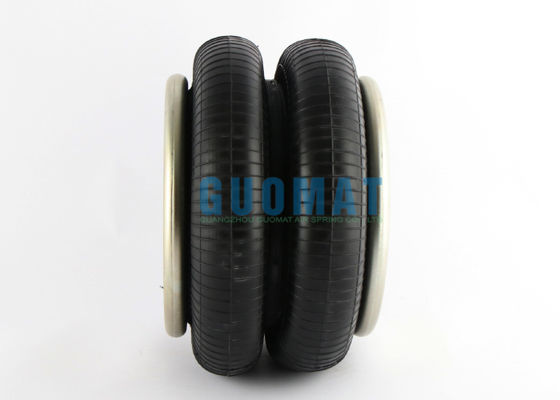

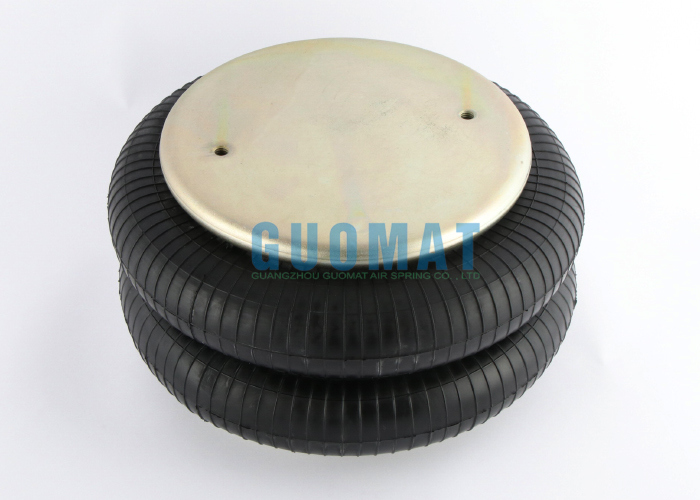

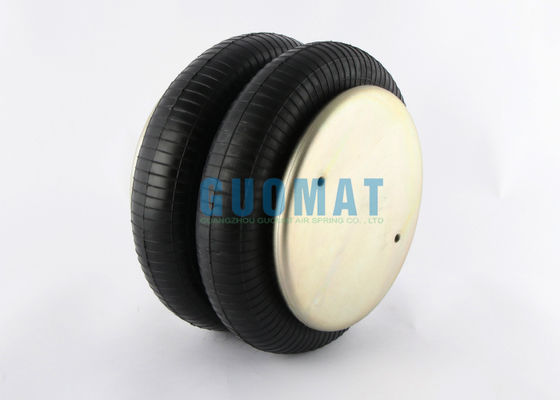

Product Images
2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring 0 2B9-255 Goodyear Suspension Rubber Bellows W01-358-6947 Firestone Air Spring 1
