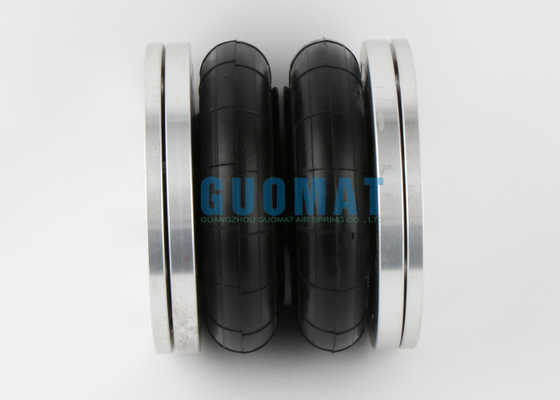

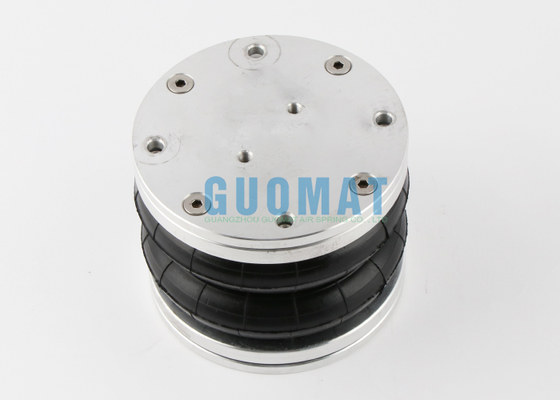

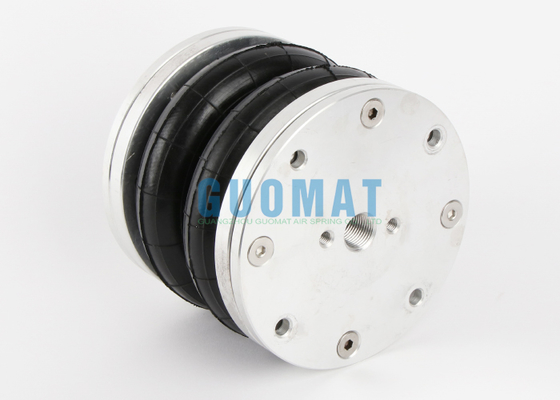

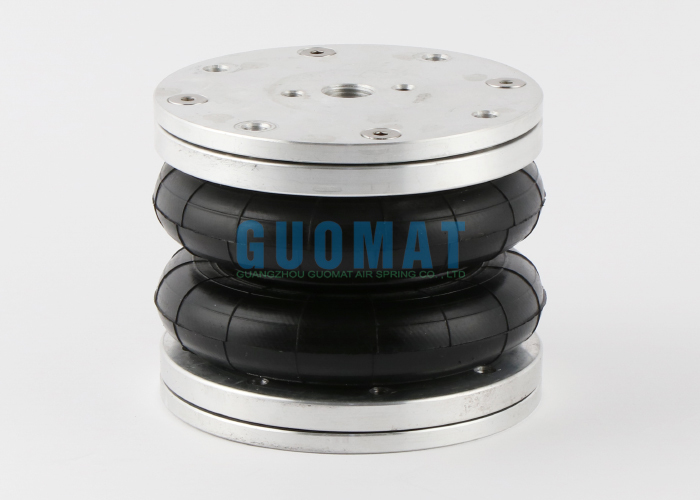

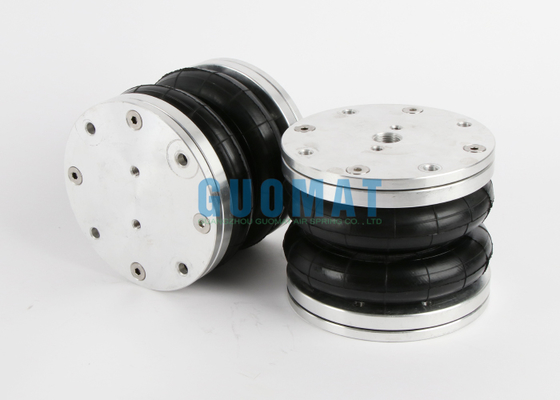

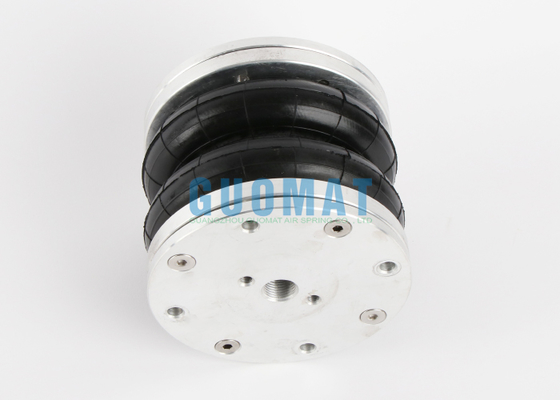

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

جزئیات محصول:
محل منبع: گوانگژو ، چین
نام تجاری: GUOMAT
گواهی: ISO/Ts16949:2009
شماره مدل: 2b6x2p
پرداخت:
مقدار حداقل تعداد سفارش: 6 عدد
قیمت: $89.9-99.9/pc
جزئیات بسته بندی: بسته بندی یا بسته بندی کارتن با توجه به نیاز مشتری
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C ، T/T ، Western Union
قابلیت ارائه: 10000 در هفته
مخاطب
توضیحات محصول جزئیات
ماده بهاری: لاستیک طبیعی کیفیت: 100 ٪ آزمایش شده است
محفوظ: شوک را کاهش دهید ضمانت: 12 ماه
نوع: بهار هوایی پیچیده مشاجره: Fd 76-14
رنگ: سیاه نوجن: PM/31062
برجسته کردن:

Norgren air spring bellows,Firestone industrial air spring,aluminum air spring bellow

,

Firestone industrial air spring

,

aluminum air spring bellow

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part
Product Attributes
Attribute Value
Spring Material Natural Rubber
Quality 100 % Tested
Fuction Reduce Shock
Warranty 12 Months
Type Convoluted Air Spring
Contitech FD 76-14
Color Black
Norgren PM/31062
Product Description

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Specifications and Detail Technical Parameters
  • Weight: 2.1 kg
  • G1/2: max. 25 Nm
  • M8: max. 12 Nm
  • Nut/Blind Nut
  • Top cover screw (nut) teeth: 4 X M8
  • Bottom cover screw (nut) teeth: 4 X M8
  • Air vent / air inlet: G1/2
  • Top cover diameter (width): 153.5 mm
  • Bottom cover diameter (width): 153.5 mm
  • Material top and bottom plate: aluminum
  • Maximum diameter 7 bar: 175mm
  • Rubber bellows stroke: 80mm-195mm
  • Girdle Hoop: a belt hoop
  • Maximum load is 80 mm height and 8 bar: 1415 daN
Pneumatic Application - Static Characteristic Values
Height H(mm) Forcr F (kN) Vol V(I)
3 bar 4 bar 5 bar 6 bar 7 bar 8 bar
160 2.28 3.52 4.5 5.5 6.54 7.6 2
140 3.3 4.46 5.64 6.84 8.07 9.33 1.7
120 3.88 5.21 6.57 7.96 9.38 10.8 1.5
100 4.59 6.16 7.76 9.4 11.1 12.8 1.2
OE Manufacturer Number
  • Continental ContiTech: FD 76-14 1/2 M8
  • Continental ContiTech: FD 76-14 D1 G1/2
  • Continental ContiTech: FD 76-14 Dl G1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2 CR
  • Continental ContiTech: FD 76-14 DI CR G1/2
  • Continental ContiTech: FD 76-14 DICR / FD76-14DICR / FD7614DICR
  • Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
  • Firestone No.: W01-R58-4070 / W01 R58 4070 / W01R584070
  • Firestone Style: 6"x2
  • Dunlop FR: 6"x2 SP1646 (COMPOSITE)
  • Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
  • Dunlop UK (Pneuride):A31330 02 01/A313300201
  • Norgren: PM/31062/PM 31062/PM31062
  • Nominal 0 (inch) x convolutions: 6"x2 / 6"x2 / 6x2
  • Parker: 6"x2 9109001A
  • YS-AIR: YS-160-2VS / YS 160 2VS / YS1602VS
FAQ
1. Who are We?

We are located in Guangzhou, close to Guangzhou Baiyun Airport, with convenient transportation. We have a modern factory and advanced rubber air spring production equipment. Our products are primarily used for shock absorption in commercial vehicles, rail vehicles, and industrial machinery.

2. How do we ensure quality?

We always provide pre-production samples before mass production and conduct a final inspection before shipment.

3. What can you buy from us?

Industrial air springs, bus air springs, truck air springs, truck cab air springs, passenger car air spring shock absorbers, and air pumps.

4. Why should you buy from us instead of other suppliers?

We have specialized in the production and sale of air springs for nearly 20 years. We have also successfully entered the overseas automotive OEM market with competitive prices. We hope to be your sincere business partner and warmly welcome your contact.

5. What services do we provide?

Accepted delivery terms: CFR, CIF, EXW, CIP, FOB
Accepted payment currencies: USD, EUR, RMB, GBP
Accepted payment methods: T/T, L/C, PayPal, Western Union
Supported languages: English, Chinese, Russian, Korean

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part 0 PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part 1
