6''X2 Industrial Applications Rubber Firestone W01-R58-4070 Double Convoluted Air Springs
Product Description
Norgren PM/31062
Norgren PM 31062
Norgren PM31062
Nominal 0 (inch)xconvolutions:6"x2/6"x2/6x2
PM31062 Can Replace The Following Part Number
Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 Dl G1/2
Continental ContiTech: FD 76-14 DI G1/2 M8
Continental ContiTech: FD 76-14 Dl G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DICR/FD76-14DICR/FD7614DICR
Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646(COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS/YS 160 2VS/YS1602VS
Specifications and Detailed Technical Parameters: Norgren PM/31062
Nut/blind nut
Top plate screw (nut) teeth: 4×M8
Screw (nut) teeth of the bottom cover plate: 4×M8
Air hole/air inlet/air fittings
Air hole/air inlet: G1/2
Rubber Bellows
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate: 153.5 mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 178mm
Rubber bellows stroke: 80mm-195m
Bumper block/bumper block
Without bumper block
Belt loop/Girdle hoop/Girdle ring
One piece of belt loop/girdle hoop/girdle ring
| Type |
Order No. |
| CR Rubber bellows only |
6×2 |
| with aluminum plates, G1/2 air inlet |
PM/31062 |
Min. pressure: 0 bar
Return force to min.height: ≤180N
Overall weight with clamped plates: 1.8kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 160mm, minimum 150mm
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Force (Load) [KN] |
2.6 |
3.5 |
4.5 |
5.5 |
6.5 |
7.6 |
2.0 |
| Spring rate [N/cm] |
675 |
855 |
1035 |
1215 |
1395 |
1570 |
| Natural frequency [Hz] |
2.5 |
2.4 |
2.4 |
2.3 |
2.3 |
2.3 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Height H[mm] |
160 |
2.6 |
3.5 |
4.5 |
5.5 |
6.5 |
7.6 |
2.0 |
| 140 |
3.3 |
4.5 |
5.6 |
6.8 |
8.1 |
9.3 |
1.7 |
| 120 |
3.9 |
5.2 |
6.6 |
8.0 |
9.4 |
10.8 |
1.5 |
| 100 |
4.6 |
6.2 |
7.8 |
9.4 |
11.1 |
12.8 |
1.2 |
About Suspension Air Springs
- Adjustability: By filling or releasing air, the spring's stiffness and height can be easily adjusted. This allows the vehicle to:
- Leveling: Maintaining the same height regardless of load (empty or fully loaded) ensures headlight coverage and driving stability.
- Adjusting Height: Certain applications (such as off-road vehicles and specialized trucks) require the chassis to be raised or lowered.
- Adjusting Comfort: Adjusting the suspension's firmness or firmness based on road conditions or personal preference.
- Lightweighting: Compared to metal springs, air springs are lighter, helping improve fuel economy.
- Smooth and Quiet: Providing a smoother, quieter ride while effectively filtering out road vibrations.
Main Applications
- Commercial Vehicles: Trucks, buses, and trailers (the most traditional application, used to ensure vehicle balance after loading).
- Passenger Vehicles: Suspension systems (such as air suspension) in high-end sedans and SUVs provide comfort and driving stability.
- Industrial Equipment: Used as shock absorbers in precision instruments, machinery, and other equipment.

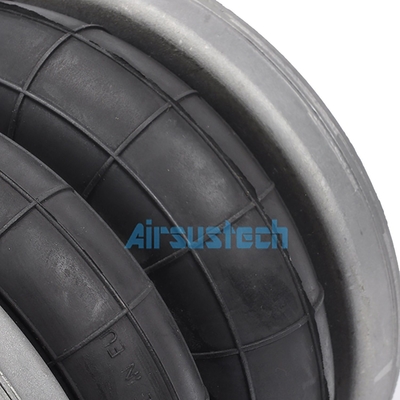

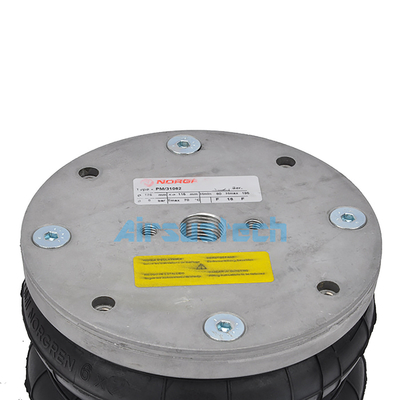

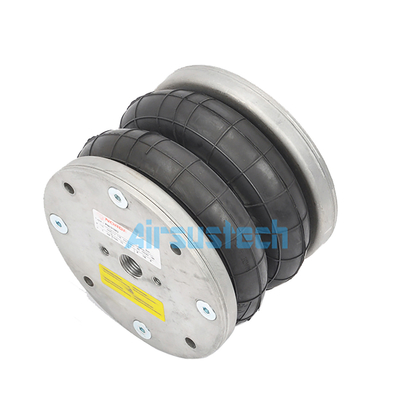

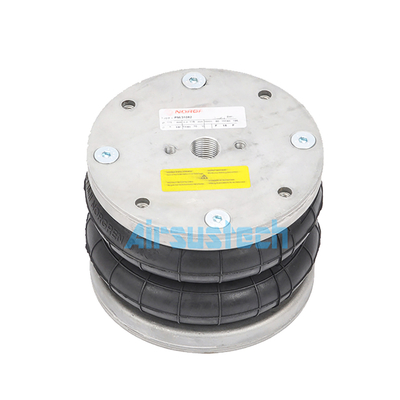

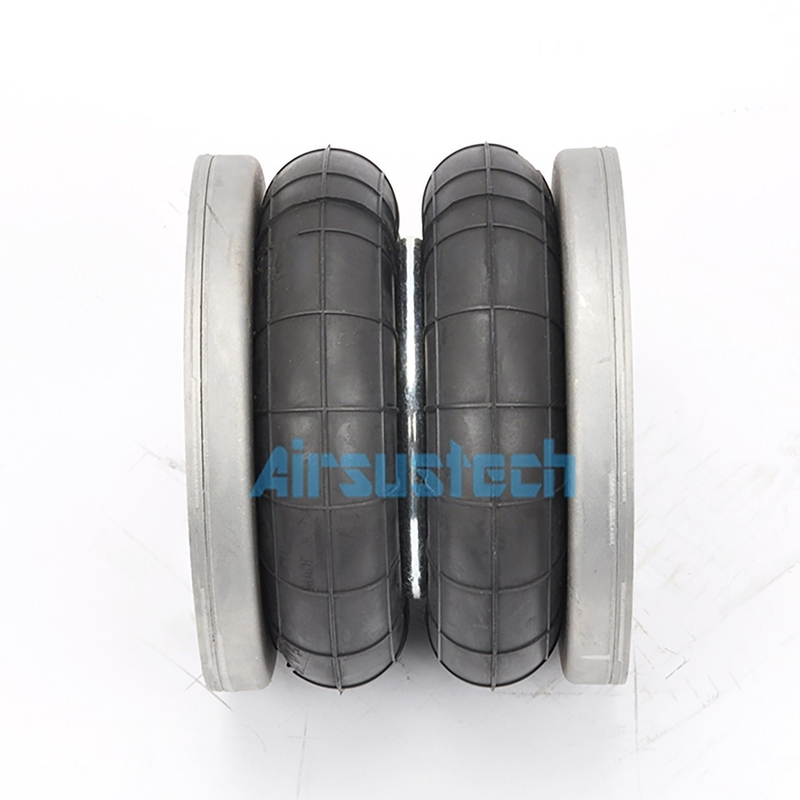

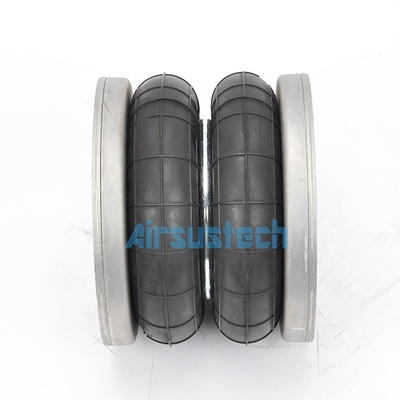

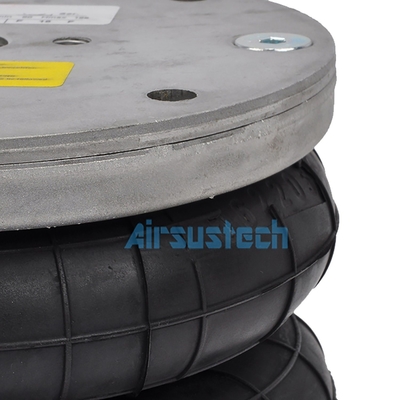

The Related Picture of PM/31062
