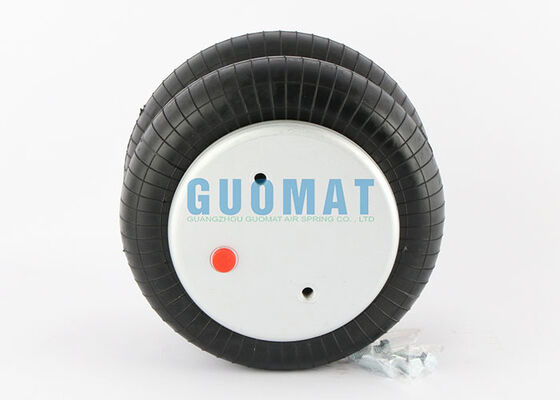

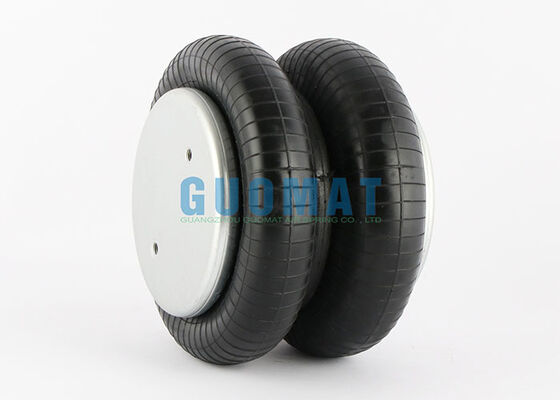

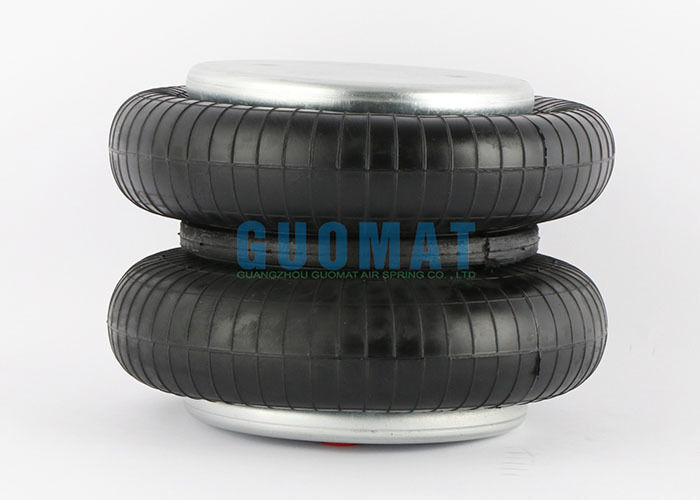

SP2B12R Phoenix Rubber Air Spring 89mm Center Distance Convoluted Vibration Isolation Solutions
GUOMAT 2B6282 is a premium double convoluted rubber air spring designed as a direct replacement for Phoenix SP2B12R. Featuring an 89mm center mounting distance, this air spring provides excellent vibration isolation, shock absorption, and load-carrying performance for a wide range of industrial applications.
Product Specifications
Type: Double Convoluted Air Spring
GUOMAT No.: 2B6282
Replacement: Phoenix SP2B12R
Material: Natural Rubber & High Strength Steel
Application: Vibration Isolation, Industrial Machinery, Pneumatic Equipment, Press Machines, Conveying Systems
Manufactured from high-quality rubber compounds and reinforced cord layers, the 2B6282 offers outstanding durability, flexibility, and resistance to fatigue. Compared with conventional metal springs, air springs effectively reduce noise, minimize vibration transmission, and improve equipment operating stability.
The GUOMAT 2B6282 is widely used in industrial machinery, vibration isolation platforms, packaging equipment, printing machines, textile machinery, and other systems requiring precise load support and vibration control.
Technical Data
Top Cover Plate: Diameter 160mm, 2 M10 threaded holes, center distance 89mm between bolts
Vent Specification: G1/4, center distance between vent and threaded holes 44.5mm
Bottom Cover Plate: Diameter 160mm, 2 M10 threaded holes, center distance 89mm between bolts
Natural Outer Diameter: 255mm
Design Height: 180mm
Maximum Height: 220mm
Minimum Height: 95mm
Key Features
- Double convoluted design for higher load capacity
- 89mm center distance mounting configuration
- Excellent vibration and shock isolation performance
- Durable rubber construction with reinforced cord layers
- Maintenance-free operation
- Long service life under continuous industrial use
- Easy installation and replacement
Packaging & Shipping
Each GUOMAT 2B6282 air spring is carefully packed to prevent damage during transportation. Standard export cartons and pallet packaging are available according to customer requirements. Products can be shipped worldwide by express, air freight, sea freight, or railway transportation.
