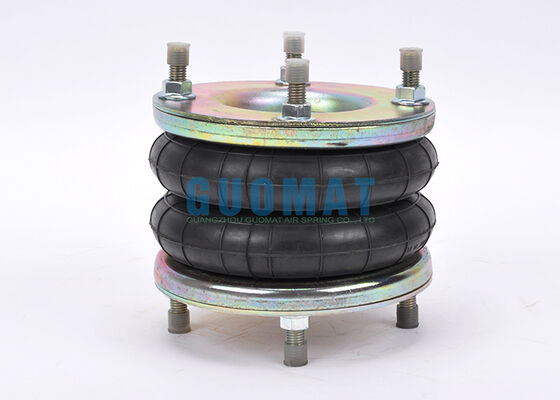

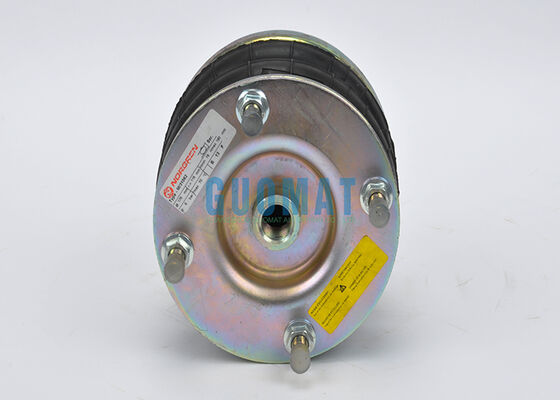

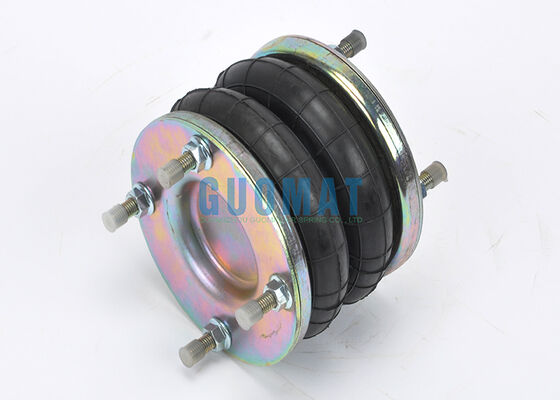

6" Diameter Norgren Air Spring M/31062 Industrial Air Bellows For Spinning Machine

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	NORGREN
گواهی:	ISO/TS16949:2009
شماره مدل:	م/31062

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T، وسترن یونیون، L/C
قابلیت ارائه:	1000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

مواد:	لاستیک طبیعی + آلومینیوم	رنگ:	مشکی
تابع:	جذب شوک	عملیات:	پر از گاز
نام محصول:	نورگرين هوايي	نوجن:	م/31062
تعداد پیچیدگی ها:	2	وزن:	2.2 کیلوگرم
برجسته کردن:	6 inch Norgren air spring , industrial air bellow spinning machine , M/31062 air spring with warranty

Norgren M/31062 Industrial Air Spring

The Norgren M/31062 is a high-performance double convoluted industrial air bellows designed for vibration isolation, lifting, and tension control applications in spinning and textile machinery.

With a 6-inch nominal diameter and 115 mm stroke, this original Norgren air spring provides stable force output, smooth motion, and excellent shock absorption during continuous machine operation.

Widely used in spinning machines, winding systems, textile production lines, and other precision industrial equipment, the M/31062 air spring helps reduce vibration transmission, improve machine stability, and extend equipment service life. Its reinforced rubber bellows and steel mounting structure ensure reliable performance under long-term cyclic loading conditions.

Product Specifications

Technical Data

Top cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Bottom cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Air port specification: G1/2
Maximum outer diameter: 175 mm
Maximum height: 190 mm
Minimum height: 75 mm

Performance Data - Force and Spring Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.7	3.7	4.7	5.7	6.7	7.8	2
Spring Rate N/cm	650	830	1015	1185	1360	1530
Natural Frequency f0 Hz	2.5	2.4	2.3	2.3	2.3	2.2

Performance Data - Height vs Pressure

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H(mm) 170	2.2	3	3.8	4.7	5.6	6.5	2.1
Height H(mm) 150	2.8	3.9	4.9	6	7.1	8.2	1.9
Height H(mm) 130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
Height H(mm) 110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
Height H(mm) 90	4.7	6.3	7.9	9.5	11.1	12.8	1.1
