Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	G4074

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$49.9/pc-$89.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T، وسترن یونیون، L/C، Paypal، مذاکره دیگران
قابلیت ارائه:	10000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

نوع مواد:	لاستیک/فولاد	گارانتی:	12 ماه
بسته:	بسته بندی استاندارد یا سفارشی	مبدا:	چین
نوع کالاها:	بهار هوا/کیسه های هوا/بالن هوا	سیستم تعلیق:	سیستم تعلیق
تست شکست:	≥3 میلیون	نام تجاری:	GUOMAT G4074
برجسته کردن:	Truck seat air suspension spring,Goodyear air shock absorber,Cab shock absorber with piston , Goodyear air shock absorber , Cab shock absorber with piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Product Specifications

Brand: GUOMAT

Product Name: Driver Cab Suspension

Model Name: G4074

Compatible Part Numbers

GOODYEAR Number: 1S4-074 / 1S 4-074 / 1S4 074 / 1S4074

GOODYEAR Piston Number: ASC-08-7-134 / ASC 08 7 134 / ASC087134

V-OLVO Number: 66003-3201 / 66003 3201 / 660033201

Technical Data: Truck Cab Air Spring

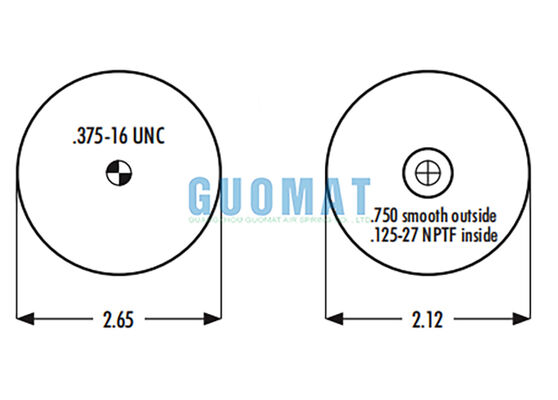

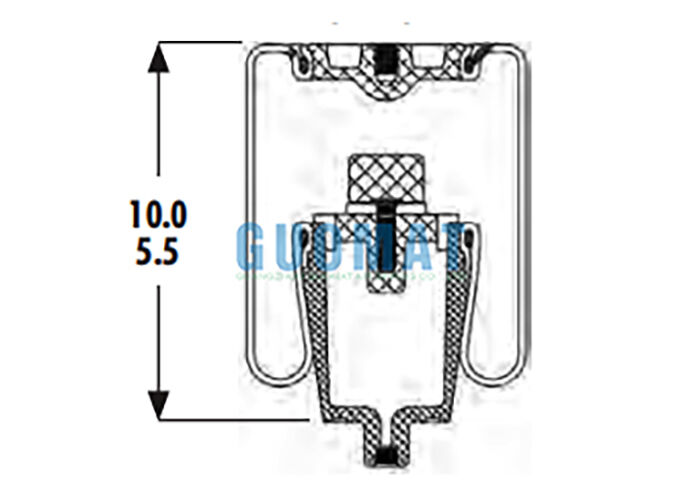

Specification	Measurement
Top cover diameter	72mm
Threaded hole	3/8-16UNC
Outer diameter	103mm
Air Hole	1/8NPTF
Base height	124.5mm
Design height	193mm
Maximum height	370mm
Minimum height	40mm

Applications

Truck Driver Seat Suspension Systems - Reduces road vibration and improves driving comfort during long-distance transportation
Heavy Duty Truck Cab Seats - Supports seat suspension to maintain stability and reduce driver fatigue
Commercial Vehicles - Suitable for buses, construction vehicles, and special transport trucks equipped with air suspension seats
Agricultural and Industrial Machinery Seats - Helps absorb shocks in tractors, harvesters, and other heavy equipment
Off-Road and Construction Equipment - Improves seating comfort in rough working environments

Key Features

Effective Vibration Absorption: The air spring design helps reduce vibration and shocks transmitted from the vehicle chassis to the driver seat
High Strength Rubber Bellows: Manufactured with durable reinforced rubber materials to ensure long service life and reliable performance
Piston Type Structure: The integrated piston design provides stable support and maintains consistent suspension performance
Improved Driver Comfort: By absorbing road impacts, the seat suspension system helps reduce driver fatigue during long hours of operation
Stable Seat Height Control: The air spring maintains proper seat positioning and contributes to better driving ergonomics
Easy Installation and Replacement: Designed for direct installation in compatible seat suspension systems, making replacement quick and convenient
