GUOMAT 3B20F-2P05 Industrial Air Spring 1/4NPT Air Fitting Hole Triple Convoluted Air Bags

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	3B20F-2P05

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$69.9-79.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T، Western Union، L/C
قابلیت ارائه:	1000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

نام مورد:	فنر بادی صنعتی	گارانتی:	12 ماه
شماره مدل:	3B20F-P05	مواد:	لاستیک + فولاد
تایپ کنید:	فنر بادی پیچ خورده سه گانه	اتصالات هوا:	1/4NPT
بسته:	بسته بندی استاندارد یا سفارشی	نام دیگر:	هوا کمک بهار
برجسته کردن:	Industrial air spring with 1/4NPT fitting,Triple convoluted air bags,GUOMAT 3B20F-2P05 air spring , Triple convoluted air bags , GUOMAT 3B20F-2P05 air spring

GUOMAT 3B20F-2P05 Industrial Air Spring 1/4NPT Air Fitting Hole Triple Convoluted Air Bags

The GUOMAT 3B20F-2P05 is a high-performance air spring designed specifically for industrial equipment, providing excellent support and vibration damping. It is widely used in heavy machinery, lifting platforms, and transportation vehicles. This model utilizes high-quality natural rubber and precision manufacturing processes to ensure high load-bearing capacity, stability, and long service life, effectively reducing equipment vibration and improving equipment efficiency.

Brand: GUOMAT
Model: 3B20F-2P05
Material: Natural Rubber
Load Capacity: 2500 kg
Operating Temperature Range: -30°C to 70°C
Warranty: 12 Months

Technical Specifications

Specification	Value
Cover plate diameter	160 mm
Number of top threaded holes	2pcs M10 threaded holes
Center distance between top threaded holes	89 mm
Air fitting type	1/4-NPT
Center distance between air vent and threaded holes	44.5 mm
Center distance between bottom threaded holes	89 mm
Natural outer diameter	223 mm
Minimum height	110 mm
Maximum height	440 mm

Product Features

Strong Load Capacity: Suitable for various heavy machinery and equipment, providing stable support
Precision Design: Precise center distance between threaded holes and air vents ensures easy installation and meets the needs of various equipment
Durable Material: Made of high-strength natural rubber, wear-resistant and aging-resistant, adaptable to various harsh working conditions
Excellent Vibration Damping: Effectively reduces mechanical vibration, protects equipment, and extends service life
Multi-functional Installation: Equipped with multiple M10 threaded holes and standard air vent interfaces to meet the needs of different equipment

Installation Instructions

Installation Method: This air spring model features M10 threaded holes at the top and bottom, allowing for selection of a suitable installation location based on equipment requirements. The air vent uses a standard 1/4-NPT interface, compatible with the air supply needs of common industrial equipment.
Installation Precautions: Ensure all threaded holes are securely tightened, and that the air vent interfaces are leak-proof. Avoid high-temperature or highly corrosive environments.

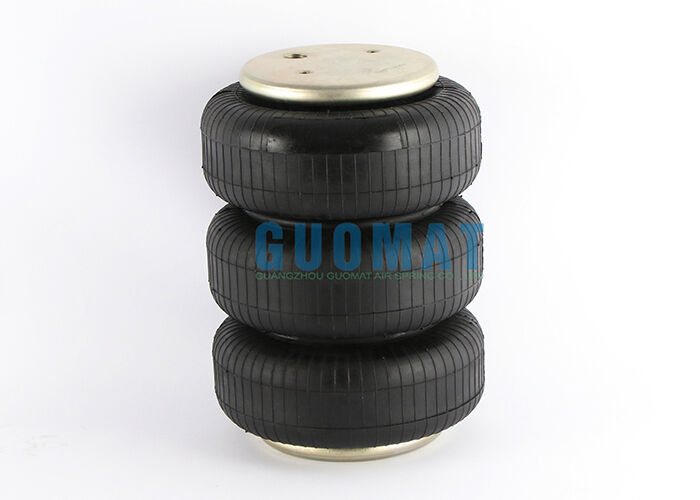

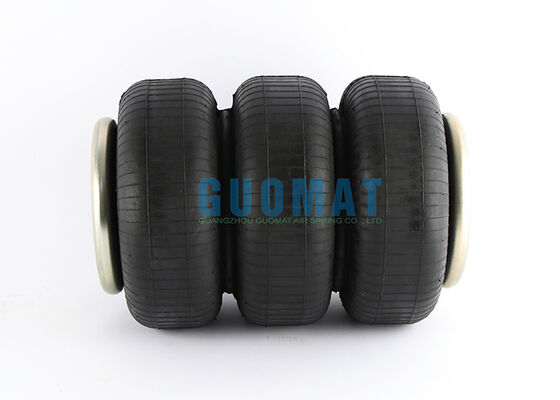

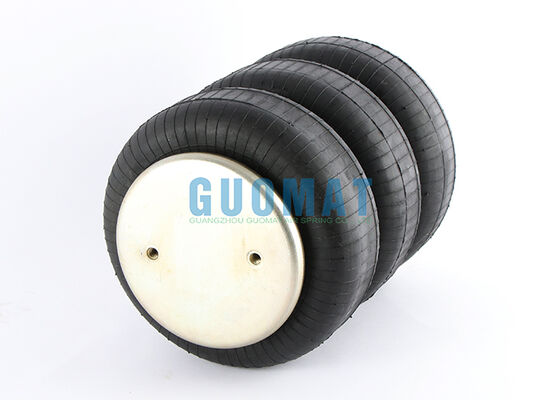

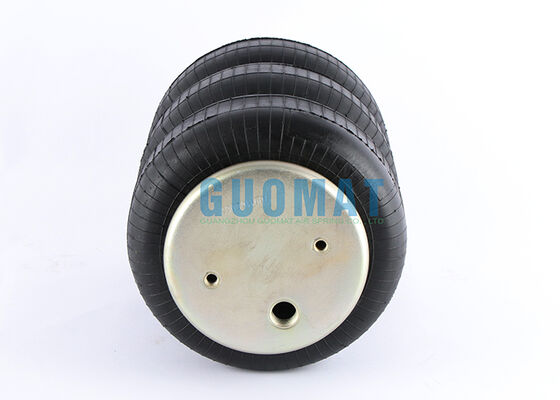

Product Images
