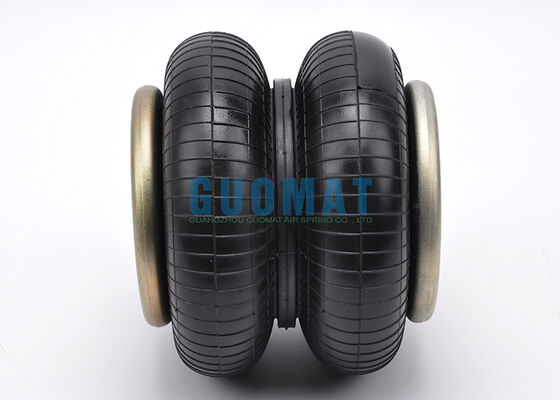

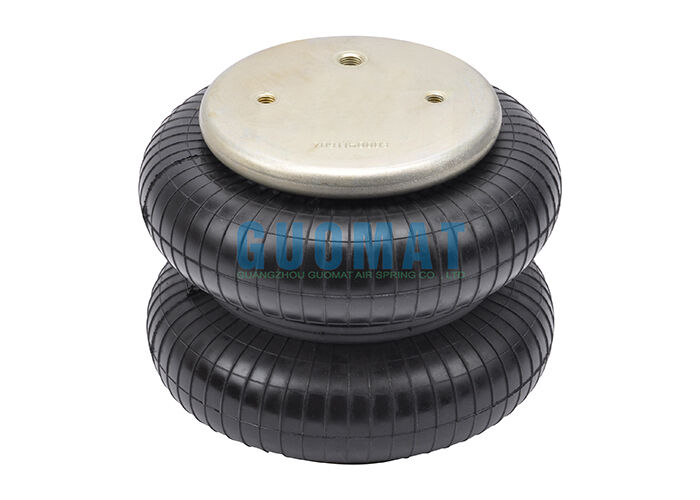

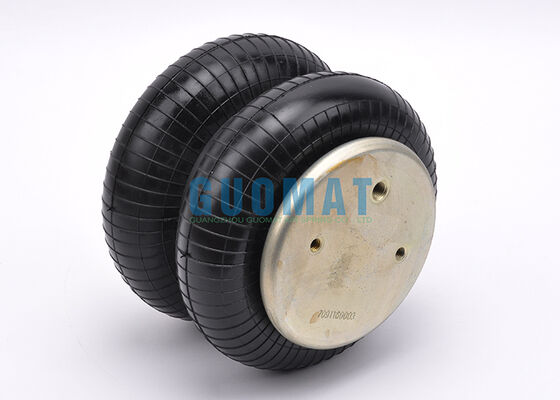

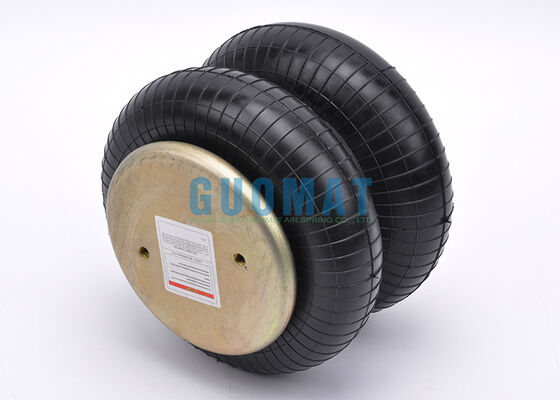

Goodyear 2B9-255 Double Convoluted Type Air Spring 578-92-3-206 Air Lift Suspension Bags

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
Model Number:	2B9255

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$59.9-69.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T، Western Union، L/C
قابلیت ارائه:	1000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

نوع مورد:	چشمه هوای لاستیکی	مواد:	زیر لاستیکی و روکش فولادی
گارانتی:	1 سال گارانتی	حداقل مقدار سفارش:	10 عدد
تابع:	کاهش شوک	Goodyear:	2B9-255/578-92-3-206
نوع زیر:	دو برابر	ارتفاع حداقل:	3.8 اينچ
برجسته کردن:	Goodyear double convoluted air spring,industrial air lift suspension bags,2B9-255 air spring with warranty , industrial air lift suspension bags , 2B9-255 air spring with warranty

Goodyear 2B9-255 Double Convoluted Type Air Spring 578-92-3-206 Air Lift Suspension Bags

Product Specifications

GUOMAT No.: 2B9255

Warranty: 1 Year

Main Material: High Quality Rubber

Color: Black

MOQ: 10 Pieces

Size: 24cm×24cm×24cm

Packing: Neutral or custom packaging

Payment: L/C, T/T, Western Union, PayPal

Delivery Time: 3-8 working days

Shipping: Air, Sea, Express (DHL, UPS, FedEx)

Original Equipment Manufacturer Numbers

GOODYEAR OEM: 2B9-255, 2B 9-255, 2B9 255
GOODYEAR BELLOWS: 578923206, 578 92 3 206, 578-92-3-206
CONTITECH OEM: 64551, FD200-25 428, FD 200-25 428
FIRESTONE OEM: 6947, W01-358-6947, W01 358 6947, W013586947

Manufacturer	Part Number
AUTOMANN	ABSP2B12RA-6947
DAYTON	354-6947
HENDRICKSON	B-8701
LOAD GUARD	SC2127
RIDEWELL	1003586947C
TRIANGLE	4428
TRP	AS69470

Product Technical Details

Top Plate Hole/Stud Qty: 2

Top Plate Dia: 6.4

Top Plate C to C Diameter: 3.5

Bottom Plate Hole Stud Qty: 2

Bottom Plate Dia: 6.4

Bottom Plate C to C Diameter: 3.5

Bottom Plate Alignment: Parallel

Bumper: Yes

Min Height: 3.8

Max Height: 12.2

Applications of Air Springs in Extruders

Extruders are widely used in the plastics, rubber, food, and chemical industries for heating raw materials and extruding them through a die. Due to the high pressure, high temperature, and heavy load involved in extrusion, air springs provide critical vibration damping, load adjustment, and equipment stability.

Vibration Damping and Isolation: Effectively dampen and absorb vibrations and impacts during high-speed operation, protecting equipment from excessive wear and reducing noise.
Improved Equipment Stability: Maintain balance under different loads and operating conditions to ensure uniform material flow and improve extrusion quality.
Support and Load Adjustment: Automatically adjust air pressure according to workload, providing necessary support for different production conditions.
Extended Equipment Lifespan: Reduce shock and vibration to minimize wear on mechanical components and lower maintenance costs.
Improved Work Efficiency: Reduce production interruptions caused by vibration, ensuring continuity and stability of the production process.
Temperature and Load Adaptability: Operate effectively in high-temperature, heavy-load environments while maintaining stable performance.
