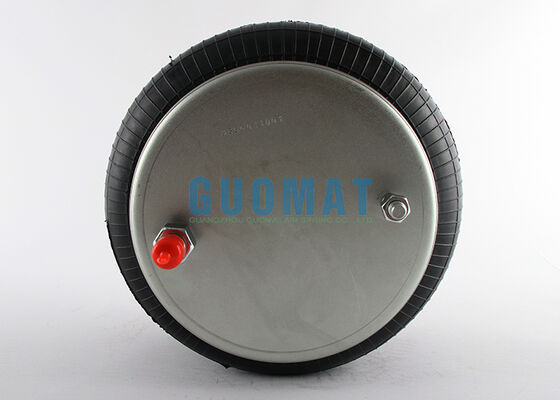

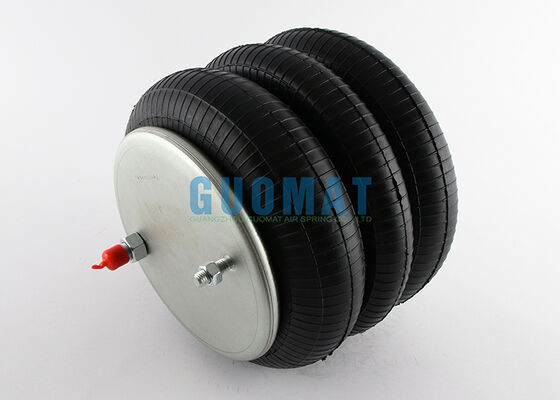

3B12-312 Triple Convoluted Air Spring 578-93-3-100 Industrial Rubber Air Bellows

جزئیات محصول:

محل منبع:	گوانگژو، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	3B8033

پرداخت:

مقدار حداقل تعداد سفارش:	5 عدد
قیمت:	USD69.9-79.9/PC
جزئیات بسته بندی:	جعبه کارتن قوی یا به عنوان نیاز مشتریان
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	L/C ، T/T ، Western Union یا دیگران
قابلیت ارائه:	1000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

تایپ کنید:	تجهیزات صنعتی جذب شوک	توانایی فشار:	0.2-0.8 M PA
بسته حمل و نقل:	کارتن ها	گارانتی:	یک سال
گودیر:	3B12-312/578-93-3-100	مواد:	لاستیک
Firetsone:	W01-358-8033	Contitech:	FT 330-29 525
برجسته کردن:	Triple Convoluted Air Spring,Industrial Rubber Air Bellows,Air Spring with Warranty , Industrial Rubber Air Bellows , Air Spring with Warranty

3B12-312 Triple Convoluted Air Spring 578-93-3-100 Industrial Rubber Air Bellows

Product Overview

Industrial air springs are vibration damping and load-bearing components that use compressed air as the elastic medium. They are primarily used for vibration isolation, buffering, and height adjustment. The products utilize high-strength rubber and multi-layered reinforced fabric structures, effectively absorbing vibration and impact while withstanding large loads, significantly reducing noise and equipment fatigue.

Compared to traditional steel springs, industrial air springs offer advantages such as adjustable stiffness, low natural frequency, and long service life. Their working height and load-bearing capacity can be flexibly adjusted according to load changes, requiring virtually no maintenance. They are widely used in industrial equipment, automated production lines, vibrating machinery, punch presses, conveyor systems, and precision instrument vibration isolation, providing an ideal solution for improving equipment stability, operational accuracy, and service life.

Cross-Reference Part Numbers

Goodyear

3B12-312, 3B 12-312, 3B12 312, 578-93-3-100, 578 93 3 100, 578933100

Contitech

64571, FT 330-29 525, FT330-29 525

Firestone

W01-358-8033, W01 358 8033, W013588033

Manufacturer	Part Number
AUTOMANN	ABSP3B22R-8033
HENDRICKSON	B-14487
LOAD GUARD	SC2784
TRIANGLE	4508
TRIANGLE	4525
TRP	AS80330

Technical Specifications

Top Plate Hole/Stud Qty: 2

Top Plate Dia: 9

Top Plate C to C Diameter: 6.2

Bottom Plate Hole Stud Qty: 2

Bottom Plate Dia: 9

Bottom Plate C to C Diameter: 6.2

Bottom Plate Alignment: 45 Degree

Bumper: Yes

Min Height: 4.5

Max Height: 18

Goodyear Air Spring Compatibility

Model Number	Part Number
3B12-300	578-93-3-100
3B12-301	578-93-3-100
3B12-303	578-93-3-100
3B12-304	578-93-3-100
3B12-305	578-93-3-100
3B12-310	578-93-3-100
3B12-312	578-93-3-100
3B12-315	578-93-3-100
3B12-319	578-93-3-100
3B12-324	578-93-3-100
3B12-328	578-93-3-100
3B12-329	578-93-3-100
3B12-335	578-93-3-100
3B12-338	578-93-3-100
3B12-342	578-93-3-100
