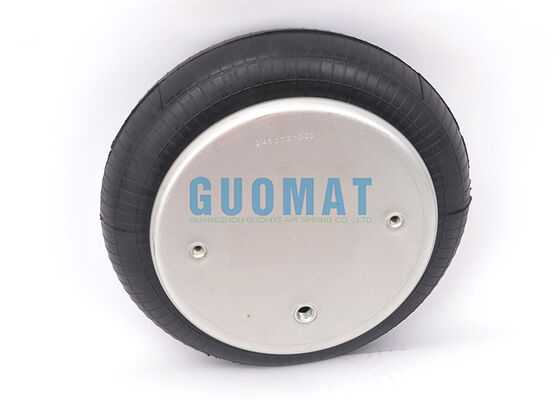

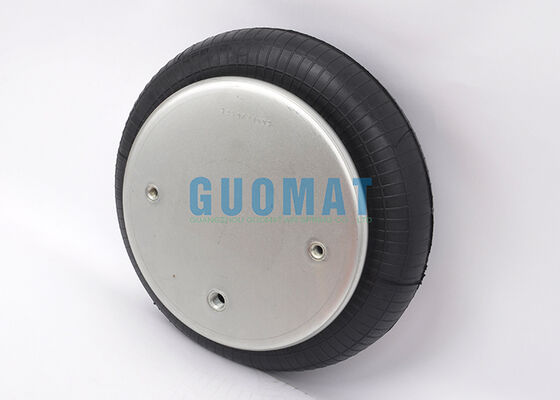

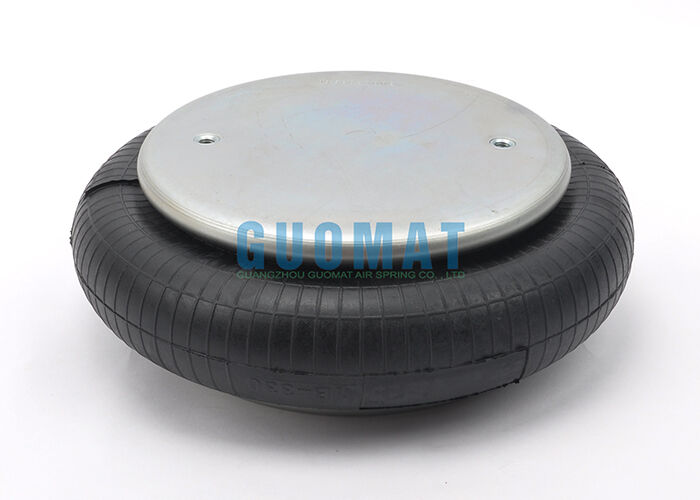

1B12-301 Goodyear Suspension Air Bags 578913301 Rubber Bellows Industrial Air Spring

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	1B7009

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$49.9-59.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T، Western Union، L/C
قابلیت ارائه:	1000 عدد در هفته

مخاطب

توضیحات محصول جزئیات

نوع فنری:	یک نوع پیچیده	گارانتی:	1 سال
مواد فنری:	فلز + لاستیک	برنامه:	برای کاربرد تجهیزات صنعتی
سنگ فرش:	W01-358-7009	Contitech:	FS 330-11 468
بلوک بافر:	با	وزن:	4.6 کیلوگرم
برجسته کردن:	Goodyear suspension air bags,industrial air spring rubber bellows,578913301 air spring with warranty , industrial air spring rubber bellows , 578913301 air spring with warranty

1B12-301 Goodyear Suspension Air Bags 578913301 Rubber Bellows Industrial Air Spring

Product Overview

1B12-301 Goodyear Suspension Air Bags 578913301 Rubber Bellows Industrial Air Spring

Item Name: Air Springs Shock
Item Number: 1B7009
Warranty: 1 Year
Place of Origin: Guangdong, China
Material: Rubber + Metal
Net Weight: 4.6KG
Packing Size: 24×24×24(cm)
Application: For Industrial Equipment Shock Absorption

Technical Specifications

Top Cover Plate Diameter	231mm
Bottom Cover Plate Diameter	231mm
Gas Hole / Air Inlet	1/4NPTF
Rubber Bellows MAX Diameter	325mm
The Working Stroke	MAX 160mm to MIN 68mm
Top Cover Plate Screw (Nut) Tooth	2×3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth	2×3/8-16UNC
Screw Center Distance of Top Cover Plate	157.5mm
Screw Center Distance of Bottom Cover Plate	157.5mm
Buffer Block	With

OEM & Cross Reference Numbers

Manufacturer	Part Numbers
Firestone	W01-358-7009, W01 358 7009, W013587009
Contitech	FS330-11 468, FS 330-11 468
Goodyear	1B12-301, 1B 12-301, 1B12 301
Goodyear Bellows	578913301, 578 91 3 301, 578-91-3-301
Triange	6374, 4468
SAF Holland	90557002AR741
Ridewell	1003587009C

Performance Data

Assembly Height (in.)	Volume@100PSIG (in³)	Pound Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
5.0	394	780	1,690	2,640	3,730	4,870
4.0	327	1,300	2,610	4,060	5,500	7,050
3.0	244	1,580	3,280	5,000	6,720	8,440

Bump Stop Functions in Industrial Air Spring Systems

Function	Explanation	Risks Without It
1. Prevent Structural Impact	Avoids metal-to-metal contact between mounting structures when air spring completely deflates	Deformation of mounting points, bolt shearing, or damage to surrounding equipment
2. Maintain Minimum Safe Height	Supports load after pressure loss, preserving essential clearance for equipment and operation	Sudden drop may snap pneumatic lines or electrical wires, or cause ground contact
3. Limit Over-Extension	Prevents rubber bellows from being over-stretched and torn during rebound conditions	Permanent damage to air spring bellows, rendering it unusable after re-inflation
4. Control Lateral Movement	Provides lateral restraint at travel limit, preventing excessive tilting or misalignment	Equipment may become highly unstable or experience significant misalignment after deflation
5. Provide Failure Warning	Frequent contact indicates insufficient system pressure or chronic leak in air spring system	Problems remain undetected until complete system failure leads to an incident
