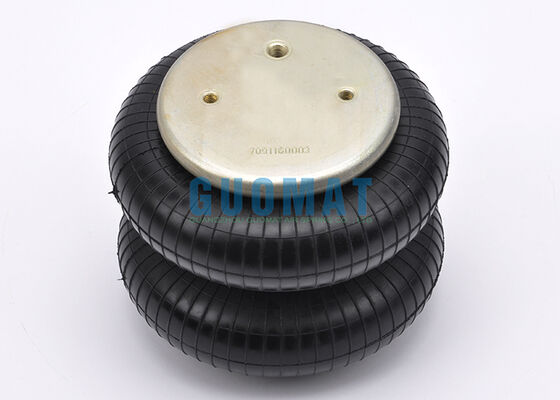

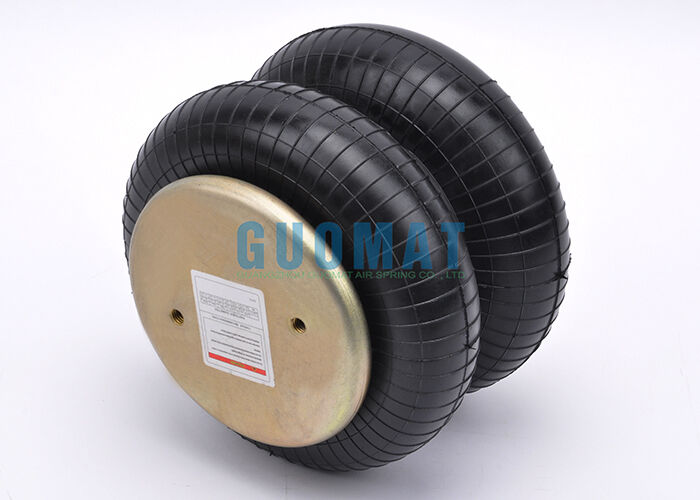

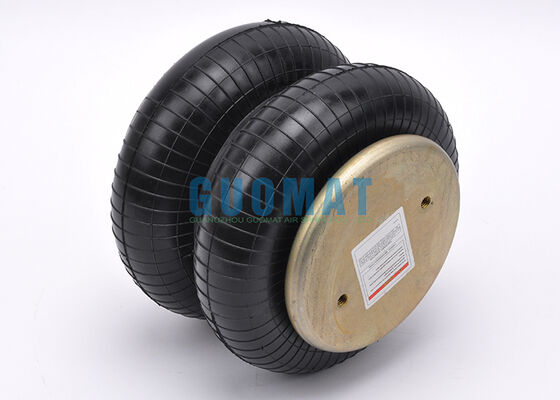

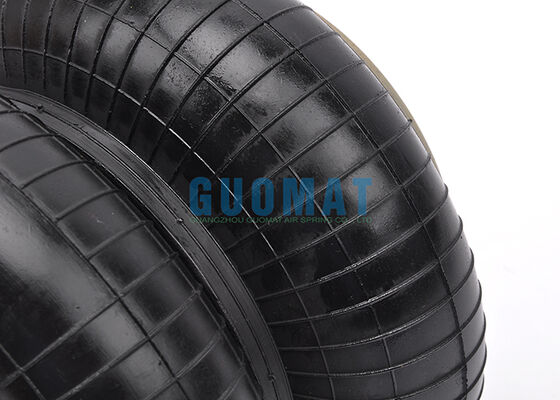

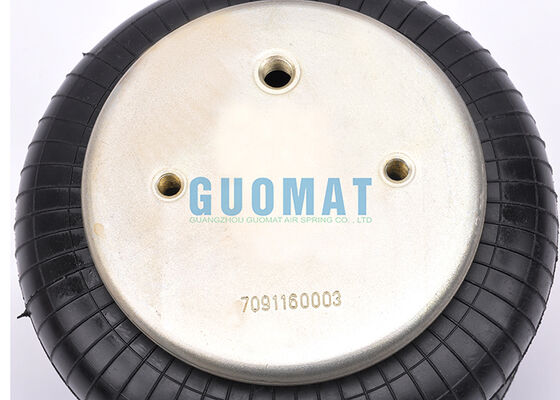

Firestone W01-M58-7894 2B12R5 PHOENIX Suspension Air Spring with 12 Months Warranty and 3.5KG Weight 100% Tested

جزئیات محصول:

محل منبع:	گوانگژو چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949, ISO9001
شماره مدل:	2B250190

پرداخت:

مقدار حداقل تعداد سفارش:	5 عدد
قیمت:	USD59.9-69.9/PC
جزئیات بسته بندی:	جعبه کارتن قوی یا به عنوان نیاز مشتری
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	L/C، T/T، وسترن یونیون یا دیگران
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

تایپ کنید:	بهار هوای تعلیق	کیفیت:	100 ٪ آزمایش شده است
محفوظ:	شوک را کاهش دهید	گارانتی:	12 ماه
نام تجاری:	گواتر	وزن:	3.5 کیلوگرم
پیچش:	2	سنگ فرش:	W01M587894
برجسته کردن:	12 Months Warranty Suspension Air Spring,3.5KG Weight Air Suspension Bags,100% Tested Rubber Air Spring , 3.5KG Weight Air Suspension Bags , 100% Tested Rubber Air Spring

W01-M58-7894 Firestone Air Suspension Bags 2B12R5 PHOENIX Rubber Air Spring Kit

Key Product Information

Brand: GUOMAT
Model No.: 2B7894
Type: Suspension Air Spring
Material: Rubber and Steel
Warranty: 12 Months
Application: Trucks, Trailers, Cars

Product Description

The W01-M58-7894 air suspension spring is a core vehicle suspension component that uses compressed air as the elastic medium. It consists of a rubber air spring, end caps, and air pressure interface, replacing traditional steel coil or leaf springs. Widely used in buses, trucks, high-end passenger cars, and special-purpose vehicles.

Key Advantages

Simultaneous shock absorption, load bearing, and automatic leveling
Automatically adjusts height by inflating/deflating to maintain ideal vehicle level
Improves driving stability, steering safety, and tire life
Significantly enhances ride comfort compared to traditional springs

OEM Cross Reference Numbers

Firestone: W01-M58-7894 / W01 M58 7894 / W01M587894

Contitech: FD 200-19 P04 / FD 200-19 / FD 200-19 P04 1/4 M10

Goodyear: 2B9-287 / 2B 9-287 / 2B9 287 / 2B9287

Dunlop(PR): S09208

Phoenix: SP 2B 12 R5 / SP2B12R5

SAF: 4.229.1004.00

Pirelli: T2086660

Taurus: Kf216

Airkraft: 113549

Technical Specifications

Parameter	Value
Cover plate diameter	160mm
Threaded holes	2XM10X1.5
Center distance between threaded holes	89mm
Air hole	M12X1.5
Maximum outer diameter	251mm
Maximum height	157mm
Minimum height	75mm

Functional Benefits

Air springs dynamically adjust vehicle height and suspension stiffness through compressed air inflation/deflation. When fully loaded, the system automatically inflates to prevent body sinking; when unloaded, it deflates to maintain soft suspension. This load-adjustable capability maintains stable body posture under various conditions, improving comfort and stability on uneven roads while reducing body roll and pitch during high-speed driving and cornering.

Additional Applications
