Flange Connection W01-358-9602 Firestone Double Convoluted Air Spring For Shock Absorption

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949, ISO9001
شماره مدل:	2H9602

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$199.9-$299.9/PC
جزئیات بسته بندی:	جعبه کارتن قوی یا به عنوان نیاز مشتری
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	L/C ، D/A ، D/P ، Western Union
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

پیچیدگی:	نوع پیچیده دوگانه	بسته حمل و نقل:	کارتن
علامت تجاری:	گواتر	تابع:	لرزش را کاهش دهید
MOQ:	4 عدد	تایپ کنید:	نوع اتصال فلنج
OEM:	Firestone W01-358-9602	رنگ:	مشکی
برجسته کردن:	Flange connection air spring,Double convoluted air spring,Firestone shock absorption air spring , Double convoluted air spring , Firestone shock absorption air spring

Flange Connection W01-358-9602 Firestone Double Convoluted Air Spring For Shock Absorption

Product Introduction

Project	Description
Brand	GUOMAT
Model	2H9602
Material	Premium rubber and reinforced steel: Rubber components offer excellent flexibility and fatigue resistance; metal components are rust-proofed for long service life.
Structure Type	Double Convoluted
Warranty	1 year: We provide a solid guarantee for product quality.
Packaging	Standard brown cardboard box: Ensures good protection of the product during transportation; neat packaging.
Minimum Order Quantity	4 pieces

OE Manufacturer Number

Firestone Style Number: Style 248-2
Firestone Assembly Number: W013589602
Firestone Assembly Number: W01 358 9602
Firestone Assembly Number: W01-358-9602
Firestone Assembly Number: WO13589602
Firestone Assembly Number: WO1 358 9602
Firestone Assembly Number: WO1-358-9602

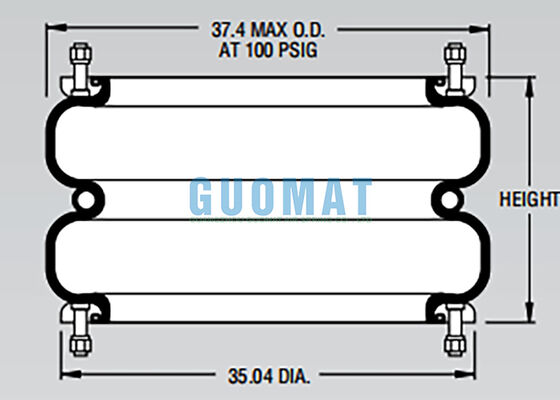

Technical Data

Ribbed neck aluminum bead rings: Equal spacing, 17/8 bolts, nuts, washers

Flange Diameter: 35.04 inches

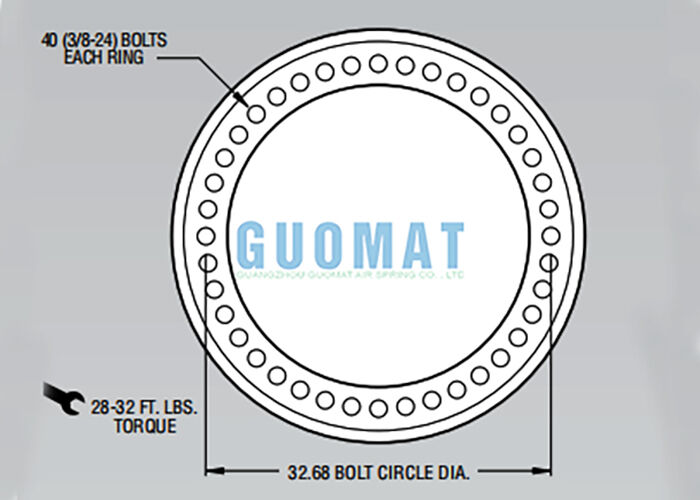

Bolts: 40pcsx3/8-24

Center Distance Between Bolts: 32.68 inches

The Rubber Bellows Maximum Outer Diameter: 37.4 inches

Maximum Height: 16 inches

Minimum Height: 4.2 inches

Design Height: 11.0 inches

Performance Data

Assembly Height (in.)	Volume@100 PSIG(in3)	Pounds Force @20PSIG	Pounds Force @40PSIG	Pounds Force @60PSIG	Pounds Force @80PSIG	Pounds Force @100PSIG
13.0	11386	12660	26460	41020	55290	69700
11.0	9815	15200	30830	47720	63890	79730
9.0	8090	16890	34210	52080	69850	87790
7.0	6243	18210	37030	55570	74410	93230
5.0	4304	19270	38820	58730	78570	98180

Double Convolution Air Springs Code Crossover Chart

Firestone Number	Contitech Number
W01-358-0319	FD 70-13 S VP
W01-M58-6160	FD 70-13 CI G1/4
W01-358-7025	FD 70-13 CI 1/4 NPT
W01-358-0030	FD 70-13 RI
W01-358-0142	FD 120-17 S VP
W01-M58-6353	FD 120-17 CI G1/4
W01-M58-6387	FD 120-17 CI G3/4
W01-358-7327	FD 120-17 CI 3/4 NPT
W01-358-0305	FD 200-22 S VP
W01-M58-6183	FD 200-22 CI G1/4
W01-M58-6194	FD 200-22 CI G3/4
W01-M58-6947	FD 200-22 CI 1/4NPT
W01-358-6952	FD 200-22 CI 3/4 NPT
W01-358-0297	FD 200-19 S VP
