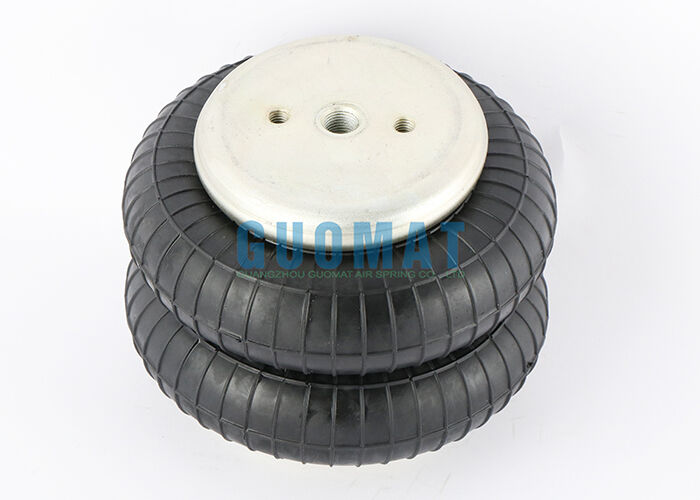

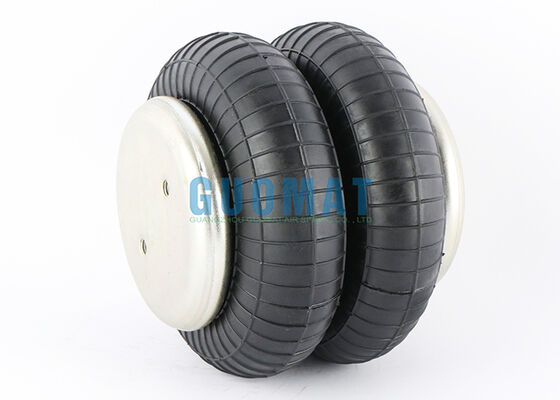

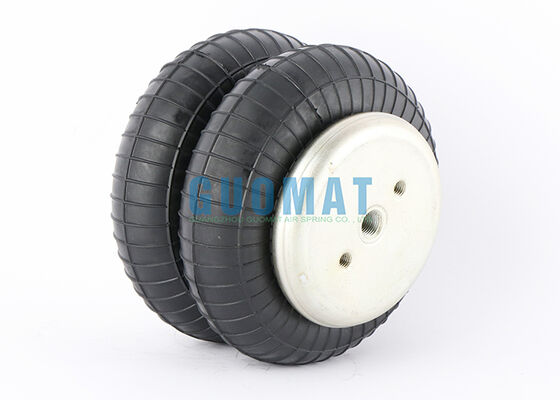

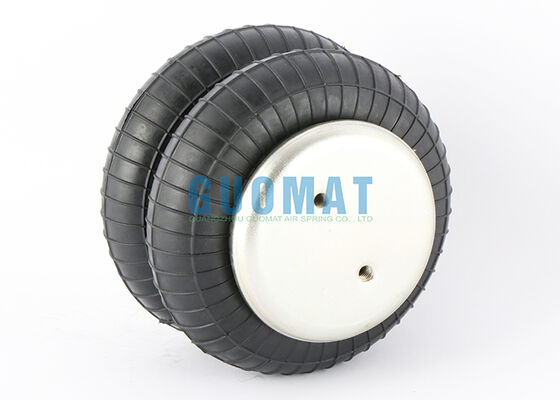

W01-358-7047 Firestone Rubber Bellows 3/4 NPT Double Convoluted Air Spring For Packaging Equipment

جزئیات محصول:

محل منبع:	گوانگژو ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/Ts16949:2009
شماره مدل:	2B7047

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$59.9-69.9/pc
جزئیات بسته بندی:	بسته بندی یا بسته بندی کارتن با توجه به نیاز مشتری
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	L/C، T/T، وسترن یونیون
قابلیت ارائه:	10000 در هفته

مخاطب

توضیحات محصول جزئیات

مواد فنری:	لاستیک طبیعی	کیفیت:	100 ٪ آزمایش شده است
محفوظ:	شوک را کاهش دهید	گارانتی:	12 ماه
سنگ فرش:	W01-358-7047	حداقل خرید:	4 عدد
آجیل کور:	(2) 3/8-16	سوراخ هوایی:	بندر NPT مرکز 3/4
برجسته کردن:	Firestone rubber air spring,3/4 NPT double convoluted bellows,industrial air spring for packaging equipment , 3/4 NPT double convoluted bellows , industrial air spring for packaging equipment

W01-358-7047 Firestone Rubber Bellows 3/4 NPT Double Convoluted Air Spring For Packaging Equipment

Product Attributes

Attribute	Value
Spring Material	Natural Rubber
Brand	GUOMAT
Model No.	2B7047
Quality	100 % Tested
Function	Reduce Shock
Warranty	12 Months
Type	Convoluted Air Spring

GUOMAT Number: 2B7047

Compatible Replacements

Firestone W01-358-7047 / WO1-358-7047
Firestone W01 358 7047 / WO1 358 7047
Firestone W013587047 / WO13587047

Additional Compatible Models

Blind nuts, 1/4 NPT

Firestone: W01-358-7025 / W01 358 7025 / W013587025
Firestone: WO1-358-7025 / WO1 358 7025 / WO13587025

Blind nuts, 3/4 NPT

Firestone: W01-358-7047 / W01 358 7047 / W013587047
Firestone: WO1-358-7047 / WO1 358 7047 / WO13587047

Blind nuts, 1/4 NPT both ends 3/4 NPT both ends (no blind nuts)

Firestone: W01-358-7035 / W01 358 7035 / W013587035
Firestone: WO1-358-7035 / WO1 358 7035 / WO13587035

Socket head aluminum bead rings (bolts, nuts, washers not included, use cap screws)

Firestone: W01-358-0030 / W01 358 0030 / W013580030
Firestone: WO1-358-0030 / WO1 358 0030 / WO13580030

3/4 NPT (only) upper plate, blind nuts lower plate

Firestone: W01-358-7030 / W01 358 7030 / W013587030
Firestone: WO1-358-7030 / WO1 358 7030 / WO13587030

Rubber bellows only

Firestone: W01-358-0319 / W01 358 0319 / W013580319
Firestone: WO1-358-0319 / WO1 358 0319 / WO13580319

Application of Air Springs in Packaging Equipment

Application Area	Specific Function	Advantages and Effects
1. Equipment Base Vibration Isolation	Installed between the packaging equipment base and the foundation to isolate both external vibrations (e.g., ground vibrations) and self-generated operational vibrations.	Protects equipment accuracy and extends service life. Reduces noise levels. Prevents vibrations from transmitting to the building structure.
2. Cushioning & Energy Absorption	Acts as a buffer element in moving parts of the packaging machine, such as during compression or impact actions, to absorb energy.	Smoothens operation, reducing impact and metal-on-metal contact. Decreases component wear and maintenance costs. Enhances the stability of the packaging process.
3. Dynamic Load Balancing	Automatically maintains the balance of platforms or conveyors when handling unevenly weighted or irregularly shaped parcels by adjusting air pressure.	Ensures smooth conveyance of parcels, preventing jams or tipping. High degree of automation and strong adaptability.
4. Height & Pressure Adjustment	Utilizes the adjustable nature of air springs to alter the height of equipment components (e.g., pressure plates, conveyors) or the applied pressure.	Easy adjustment for parcels of different sizes, densities, and materials. Uniform packaging pressure ensures consistent packaging quality.
5. Active Vibration Isolation Systems	In high-end, precision packaging equipment, uses sensors and control systems to actively adjust the air spring pressure in real-time to counteract vibrations.	Provides top-level protection for high-value, fragile products (e.g., electronics, glassware). Enables ultra-quiet and ultra-smooth operation.
