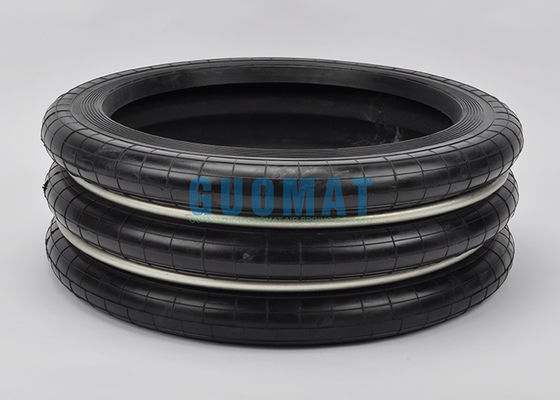

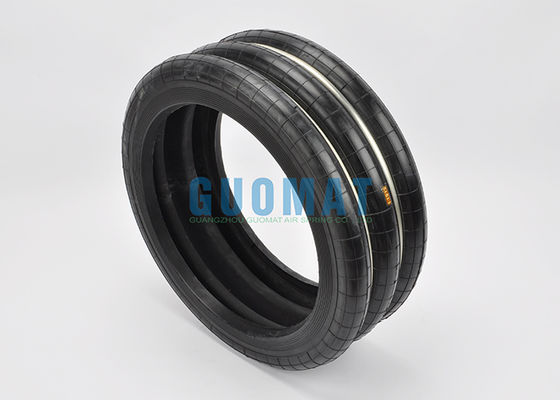

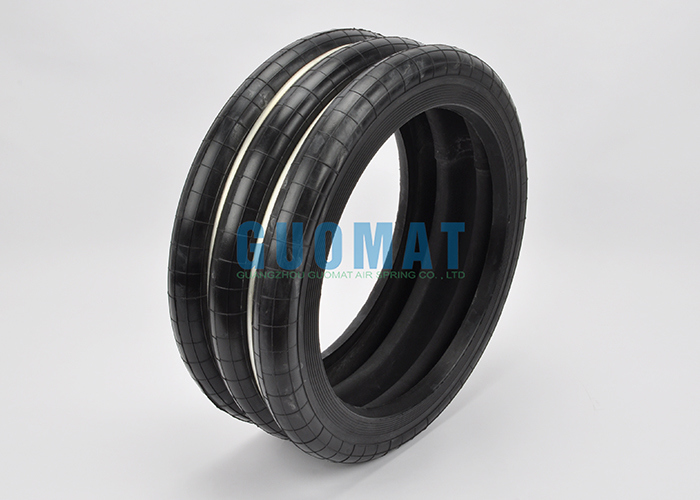

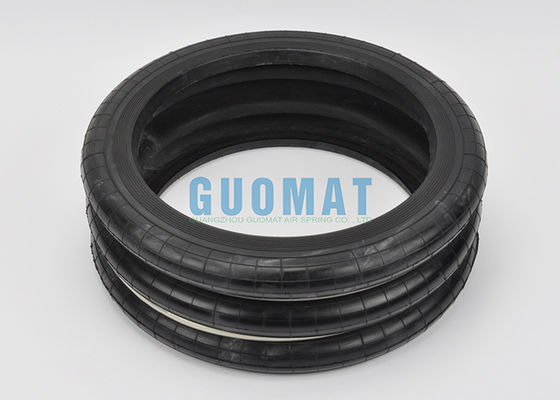

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

جزئیات محصول:

محل منبع:	گوانگژو چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949, ISO9001
شماره مدل:	F-160-3

پرداخت:

مقدار حداقل تعداد سفارش:	5 عدد
قیمت:	USD99.9-299.9/PC
جزئیات بسته بندی:	جعبه کارتن قوی یا به عنوان نیاز مشتری
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	L/C ، T/T ، Western Union یا دیگران
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

نام محصول:	فنر بادی Rubber Punch	گارانتی:	یک سال
توانایی فشار:	0.2-0.88 MPa	رنگ:	مشکی
ویژگی ها:	با حلقه کمر	"یوکوهاما":	S160-3R
وزن:	2.8 کیلوگرم	استفاده:	برای تجهیزات ضربه زدن
برجسته کردن:	Yokohama rubber air spring punch press,Rubber air spring 82-227mm stroke,Punch press airbag with warranty , Rubber air spring 82-227mm stroke , Punch press airbag with warranty

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

Product Specifications

Attribute	Value
Product Name	Rubber Punch Air Spring
Warranty	One Year
Pressure Ability	0.2-0.88 MPa
Bumper Block	Without
Color	Black
Features	With Waist Ring
YOKOHAMA	S-160-3R
Other Name	Yokohama Air Spring

GUOMAT Number: F-160-3

YOKOHAMA Number: S-160-3

YOKOHAMA Number: S 160 3

YOKOHAMA Number: S160-3

YOKOHAMA Number: S-160-3R

YOKOHAMA Number: S 160 3R

YOKOHAMA Number: S160-3R

YOKOHAMA Number: SC-160-3R

YOKOHAMA Number: SC 160 3R

YOKOHAMA Number: SC160-3R

F-160-3 Rubber Air Spring Technical Data

Specification	Value
Convolutions	3
Design Height	152mm
Max.Height	227mm
Min.Height	82mm
Common Max.Travel	±53mm
Compression Max.Outer Dia.	220mm
Effective Area	200cm²
Volume	3.4L
Load	9.8KN
Dynamic Spring Constant	157n/mm
Natural Vibration Frequency	2.0Hz
Max.Internal Pressure	0.88Mpa
Internal Pressure Failure	2.9-3.9MPa

Punch Air Spring Features

A punch press air spring is a component that uses compressed air to perform several functions in a stamping or punching machine, including providing force, absorbing shock and vibration, balancing the weight of the slide, and ejecting workpieces. They offer advantages like adjustability, shock absorption, and ease of installation, making them versatile for various machine types.

High efficiency: Offers excellent vibration and noise reduction.
Adjustability: The force and height can be adjusted with simple inflation and deflation of air pressure.
Versatility: Can be installed on a wide range of equipment and can adapt to different loads by changing the air pressure.
Safety: Can help prevent accidents by providing stability and absorbing shocks.
Low maintenance: As there are no sliding parts, lubricating oil is not required, and they are easy to install and maintain.
