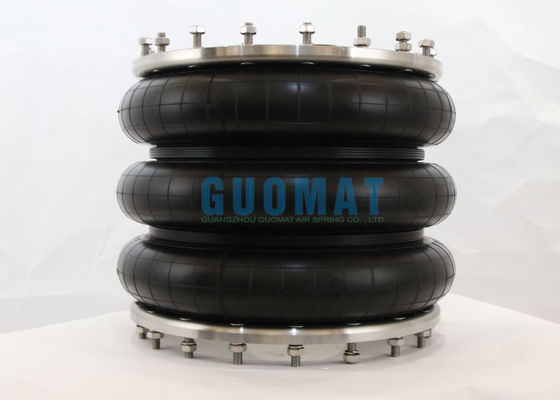

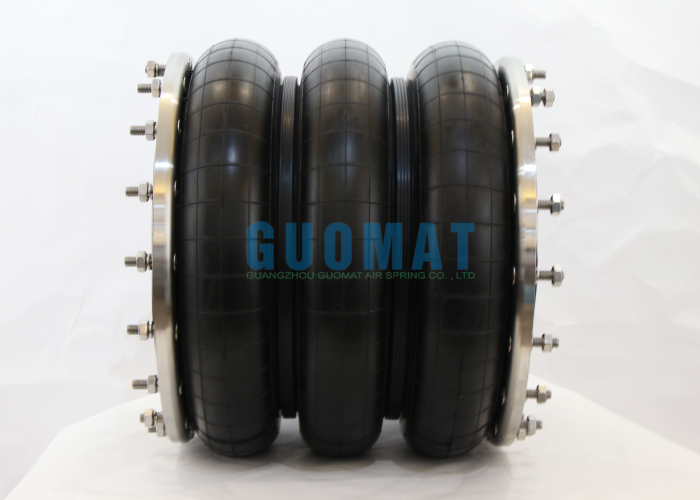

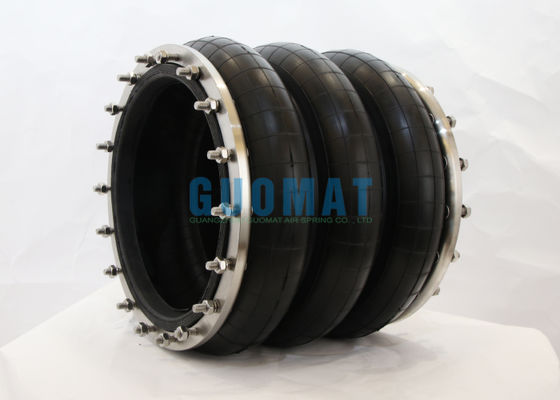

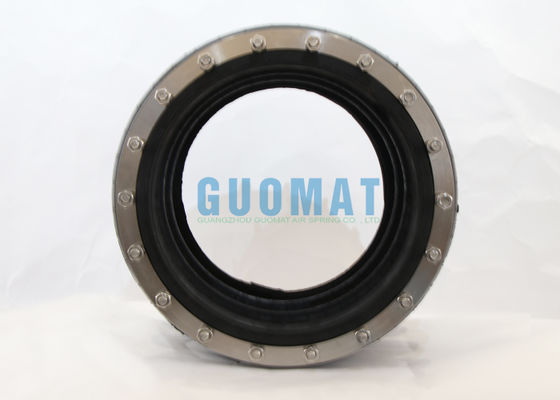

Durable Rubber W01-358-7761 Firestone Flange Air Spring Style 312 Air Bellows For Industrial Machine
Durable Rubber W01-358-7761 Firestone Flange Air Spring Style 312 Air Bellows For Industrial Machine
Product Introduction
Material:
Rubber and Steel
Convolutions:
Double Convoluted
Packing:
Standard Brown Cardboard Box Packaging
Trade Terms:
FOB, EXW, CIF
OE Manufacturer Number
Firestone Style Number: 312
Firestone OEM Number: W01-358-7761 / WO1-358-7761
Firestone OEM Number: W01 358 7761 / WO1 358 7761
Firestone OEM Number: W013587761 / WO13587761
Other Firestone Assembly Numbers with the Same Style Number:
Rubber Bellows Only
W01-358-7915 / W01 358 7915 / W013587915
WO1-358-7915 / WO1 358 7915 / WO13587915
Ribbed Neck Aluminum Bead Rings (Unequal Spacing) 17/8 b,n,w
W01-358-7760 / W01 358 7760 / W013587760
WO1-358-7760 / WO1 358 7760 / WO13587760
Rolled Plate Assembly 1/2 Blind Nuts, 3/4 NPT
W01-358-7286 / W01 358 7286 / W013587286
WO1-358-7286 / WO1 358 7286 / WO13587286
Technical Data
| Flange diameter: |
15.12 inches |
| Bolts: |
18pcs x 3/8-24 |
| Center distance between bolts: |
13.81 inches |
| Maximum outer diameter: |
18.2 inches |
| Design height: |
13.0 inches |
| Maximum height: |
18 inches |
| Minimum height: |
4.5 inches |
Assembly
| Height(in.) |
Volume@100PSIG(in3) |
Pound Force |
@20PSIG |
@40PSIG |
@60PSIG |
@80PSIG |
@100PSIG |
| 14.0 |
2342 |
2300 |
4640 |
7230 |
9820 |
12420 |
| 12.0 |
2061 |
2760 |
5510 |
8560 |
11510 |
14450 |
| 10.0 |
1744 |
3130 |
6260 |
9620 |
12870 |
16060 |
| 8.0 |
1400 |
3340 |
6940 |
10370 |
13820 |
17440 |
| 6.0 |
1021 |
3790 |
7580 |
11510 |
15350 |
19280 |
Can Flange Air Springs be Used on RVs?
Absolutely! Flange air springs are not only used on RVs, but are also a very popular and widely used upgrade solution.
Here are its main benefits for RVs:
- Install flange air springs alongside the existing leaf spring suspension. They don't replace the original springs, but rather act as an "assistant," sharing the load and allowing you to adjust the support.
- Some high-end or customized RV chassis use full air suspension systems, which include flange air springs as a core component.
Adjusting vehicle height and maintaining level: When an RV is connected to a trailer or has uneven loads, the vehicle body is prone to sagging or tilting. By inflating the air springs, the vehicle body can be easily raised and leveled, which is crucial for parking at campsites and ensuring the proper functioning of appliances such as refrigerators.
Significantly improved driving stability and safety: Increased suspension support effectively reduces significant body roll and nose dive, making the large RV more stable and safer at high speeds and when cornering. Maintaining a level headlight position also means the headlights are angled correctly, ensuring safety.
Improved ride comfort: Air springs better absorb and cushion road bumps, providing a smoother and more comfortable ride compared to the "hard impact" of leaf springs.
Protected vehicle structure: By providing additional support, the load on the chassis, axles, and tires is reduced, helping to extend the lifespan of these critical components.
