S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

جزئیات محصول:

محل منبع:	گوانگدونگ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949, ISO9001
شماره مدل:	F-300-4

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کارتن قوی یا به عنوان نیاز مشتری
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	L/C ، D/A ، D/P ، Western Union
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

ساختار:	کوادرا پیچیده	کیفیت:	100 ٪ آزمایش شده است
محفوظ:	شوک را کاهش دهید	علامت تجاری:	گواتر
خدمات پس از فروش:	12 ماه	دمای کاری:	-40 ℃+70
"یوکوهاما":	S-300-4R	رنگ:	مشکی
برجسته کردن:	Yokohama industrial air spring,206mm natural height air spring,air rubber spring with waist ring , 206mm natural height air spring , air rubber spring with waist ring

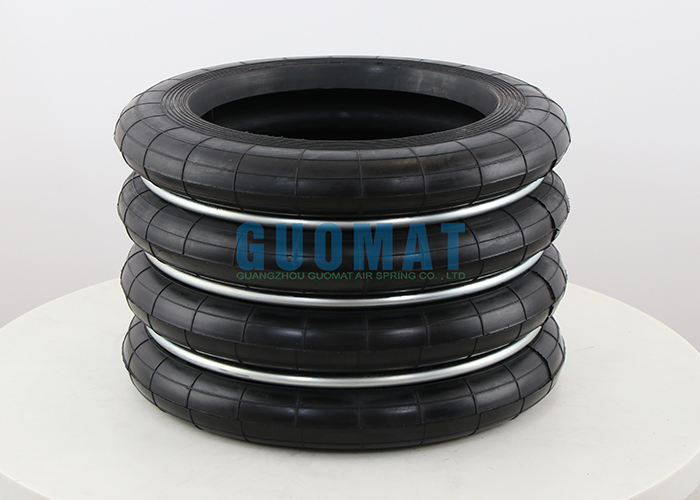

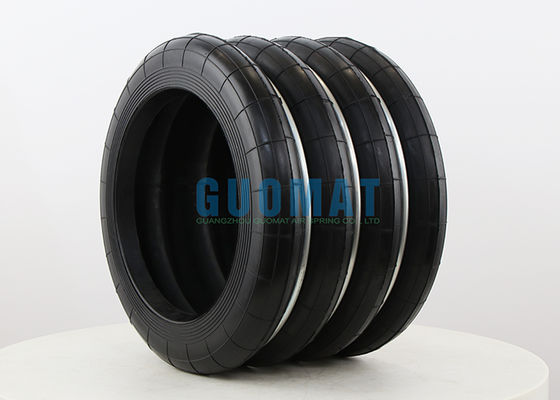

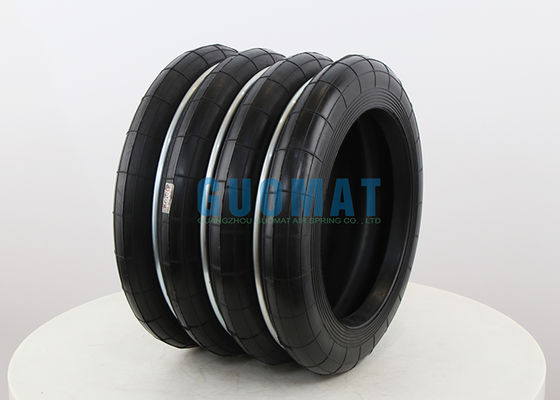

S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Part Number
AIRSUSTECH Part No.: F-300-4
YOKOHAMA S-300-4R
YOKOHAMA S 300 4R
YOKOHAMA S-300-4

Product Application

Automation technology
Conveyor systems
Agricultural machinery
Food industry
Paper and textile equipment
Pantograph drives
Sawmill machinery
Punch and forming presses
Bellow paper machine equipment

GUOMAT \| YOKOHAMA	Height H (mm)	Common Max.Stroke	Compression Max OD	Approximate values at standard height and internal pressure of 0.49 MPa	Use maximum internal pressure
F-300-4 \| S-300-4	206	326	111	±80	360
F-300-3 \| S-300-3	152	242	82	±60	360
F-300-2 \| S-300-2	98	158	53	±40	360
F-300-1 \| S-300-1	72	117	40	±30	400

Advantages Compared to Mechanical Springs

Constant pressure: Within its stroke range, air springs provide a very stable force, while the force of a mechanical spring varies with compression.
Adjustable pressure: Output force can be easily changed by simply adjusting the intake pressure, adapting to different molds and processes.
Long stroke: Compared to a mechanical spring of the same size, air springs have a longer effective working stroke.
Long lifespan: High-quality air springs can last for millions of cycles, far exceeding the lifespan of mechanical springs.
Flexible installation: Compact design, easy to arrange in molds.

Product Images
