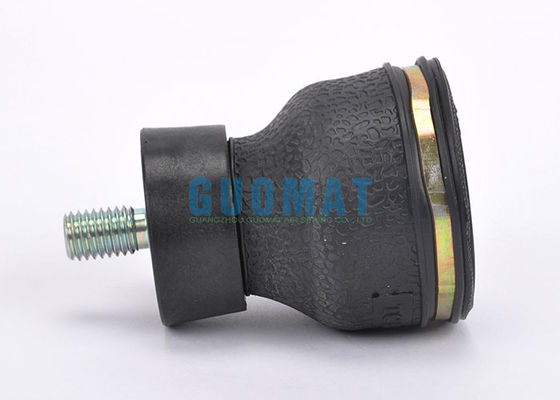

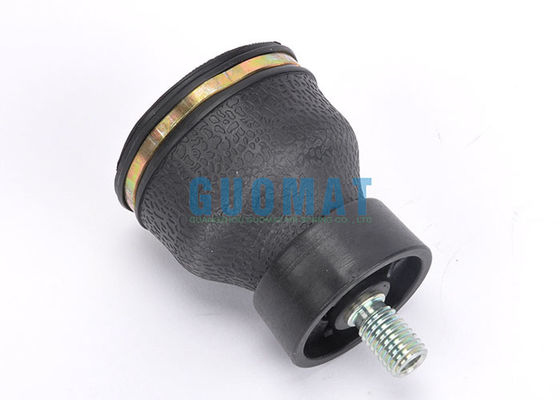

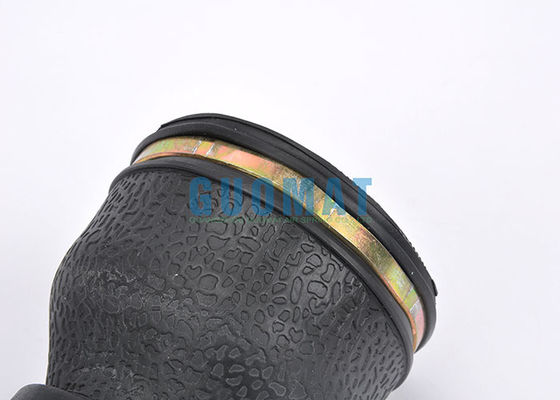

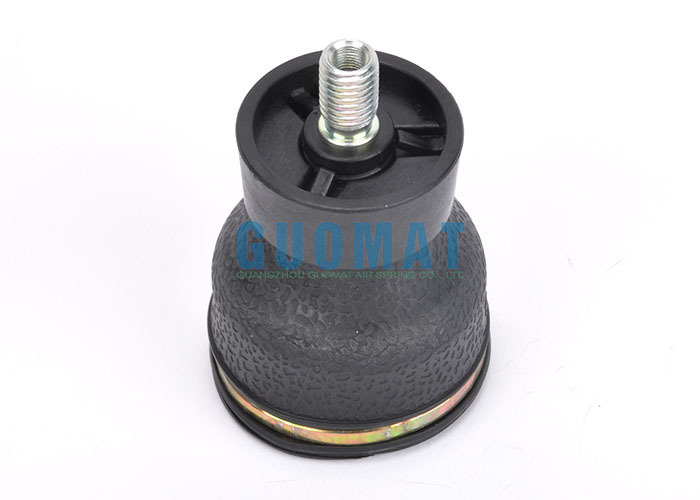

W02-358-3000 Firestone Style 1M1A-0 Cab Air Shock Absorber 1/8NPT Seat Air Spring

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	G3000

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$39.9-49.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T ، Western Union ، L/C
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

نام مورد:	ضربه گیر کابین	ضمانت:	ضمانت 1 ساله
کیفیت:	100 ٪ آزمایش شده است	موقعیت:	برای صندلی های راننده
سنگ فرش:	W02-358-3000	اتصالات هوا:	1/8 NPT
ماده گل میخ:	پلاستیکی	رنگ:	سیاه
برجسته کردن:	Firestone cab air shock absorber,1M1A-0 seat air spring,1/8NPT cab shock absorber , 1M1A-0 seat air spring , 1/8NPT cab shock absorber

W02-358-3000 Firestone Style 1M1A-0 Cab Air Shock Absorber 1/8NPT Seat Air Spring

Product Description

Product: Sleeve Air Bags
For Truck: Cab Seats for General Trucks
Brand: GUOMAT
Model No.: G3000
Material: Plastic
Warranty: 12 Months
Condition: New
Items Included: Mount
Universal Fitment: Yes
Packing: Neutral Packing or Customization

OEM Reference Number

Firestone OEM Part Number: W02-358-3000, W02 358 3000, W023583000

Firestone Bellows Part Number: 1M1A-0, 1 M1A-0, 1 M 1A-0

Other Firestone Models with the Same Style 1M1A-0:
Firestone Assembly Part Number: W02-358-3001, W02 358 3001, W023583001
Firestone Assembly Part Number: W02-358-3005, W02 358 3005, W023583005

GUOMAT G3000 Technical Data

5/16-18 Threaded Hole
2.88 Top Cover Plate Diameter
3.4 Max Outer Diameter
1/8NPT Air Inlet
2.4 Bottom Diameter
3.5 Max.Height
1.5 Min.Height

Volume @ 100PSIG=9.2in³ | Natural Frequency
Gage Pressure(PSIG)	Load(lbs.)	Spring Rate(lbs./in.)	CPM	HZ
40	210	336	235	3.92
60	330	467	224	3.73
80	450	619	220	3.67
100	570	740	214	3.57

Advantages of Installing GUOMAT G3000 Air Springs

Infinitely Adjustable Suspension Stiffness: Adjust at any time according to different situations:
- Single Ride: Lower air pressure for softer, more comfortable experience
- Dual Ride/Carrying Heavy Loads: Increase air pressure for strong support
- Highway Cruise: Increase air pressure for greater stability
- City Driving: Lower air pressure for better bump absorption
Improved Handling and Stability: Reduces body roll and sway at high speeds
Maintaining Ride Height: Prevents sag under heavy loads
Relatively Easy Installation: DIY-friendly upgrade kit
