W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags

W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags

  • W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags
  • W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags
  • W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags
  • W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags
W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags
جزئیات محصول:
محل منبع: گوانگدونگ ، چین
نام تجاری: GUOMAT
گواهی: ISO/TS16949:2009
شماره مدل: 3B7808
پرداخت:
مقدار حداقل تعداد سفارش: 6 عدد
قیمت: $69.9-79.9/pc
جزئیات بسته بندی: جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل: 2-8 روز کاری
شرایط پرداخت: T/T ، Western Union ، L/C
قابلیت ارائه: 1000 قطعه در هفته
مخاطب
توضیحات محصول جزئیات
نام محصول: محرک هوای دو پیچ ضمانت: 12 ماه
مادی: لاستیک + فولاد موق: 10 قطعه
اتصالات هوا: G1/4 گودایر: 3B14-356
کاربرد: صنعتی یا دیگران نوع: چشمه هوا
برجسته کردن:

Firestone Industrial Air Spring,Goodyear Crimped Air Bags,Convoluted Air Spring 3B14-356

,

Goodyear Crimped Air Bags

,

Convoluted Air Spring 3B14-356

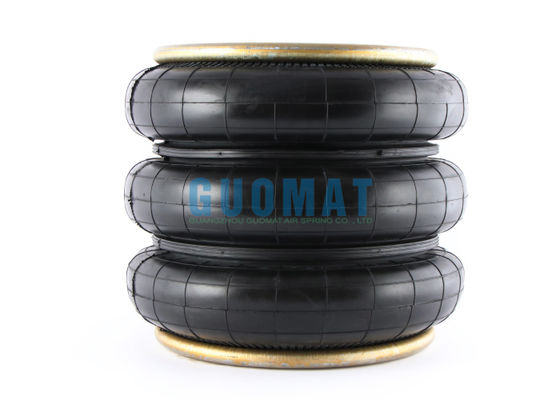

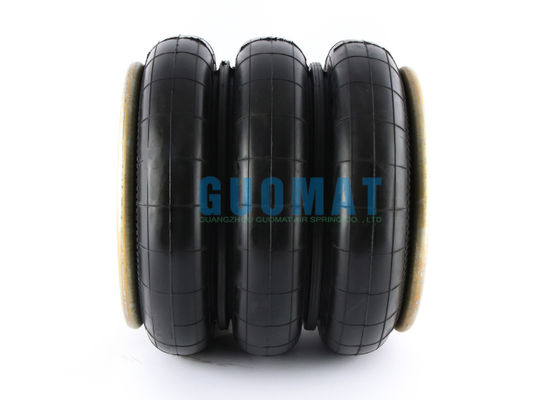

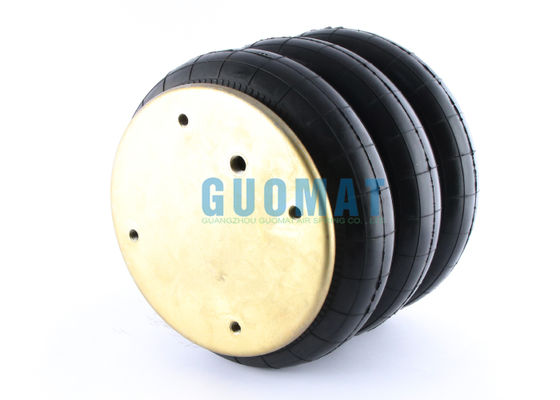

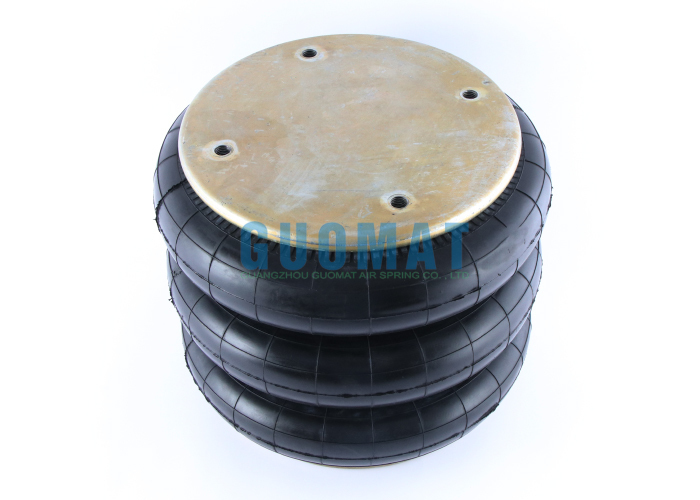

W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags

Product Description


Item Name: Industrial Air Spring
Brand: GUOMAT/Neutral
Model Number: 3B7808
Type: Convoluted Type
Material: Rubber and Steel
Warranty: 1 Year
MOQ: 1 Piece
Color: Black
Origin: Mainland China
Size: Manufactured to Standard Specifications


Cross Reference No.

CONTITECH FT 530-32 336

CONTITECH FT 530 32 336

CONTITECH FT 530 32 329



FIRESTONE W01-358-7808

FIRESTONE W01 358 7808

FIRESTONE W013587808

FIRESTONE W01-358-7798

FIRESTONE W01 358 7798

FIRESTONE W013587798

FIRESTONE FLEX 313D

GOODYEAR 3B14-356

GOODYEAR 3B14 356

GOODYEAR 3B14-350/354

GOODYEAR 3B14 350/354

GOODYEAR FLEX 578-93-3-350

GOODYEAR FLEX 578 93 3 350

GOODYEAR FLEX 578933350



Hendrickson : S13157

Dayton : 3547808

Leland : Sc2031

Triangle : 6319

Triangle : 4336

Navistar : 554801C1

EI Ride : 8030170

SAF Holland : 57007808

Airkraft : 115061/3B-356

Truck stell : 63640

Brake & Wheel : M3533

Ridewell : 1003587808C

Peerless : 55000030



Technical Data

Maximum load: 4100kg
Maximum outer diameter: 410mm
Natural outer diameter: 356mm
Minimum compressed height: 120mm
Maximum extended height: 508mm
Air hole standard: 1/4NPT





Main Applications of Air Springs in Amusement Rides



Motion Simulator Platforms

Application Description: This is the most classic application of air springs. Examples include flight simulators, racing simulators, and spacecraft simulators. The platform is typically supported by six or more air springs (forming a six-degree-of-freedom platform).

Operating Principle: A computer precisely controls the inflation and deflation of each air spring, as well as its length. These springs work together to drive the platform through complex and realistic movements such as pitch, tilt, lift, and roll, perfectly recreating the sensation of flying or driving.



Thrilling Rides

Application Description: The connection between roller coaster cars, the base of large pendulums, and the underside of bungee jumping seats.

Operating Principle:

Cushioning and Shock Absorption: During high-speed travel or emergency braking on roller coasters, air springs effectively absorb shock and vibration, significantly improving ride smoothness and comfort, and avoiding harsh impacts.

Active Control: In some new interactive roller coasters, the height or stiffness of the air springs beneath the seats can be adjusted to subtly alter the ride's posture during ride time, enhancing the experience.



Immersive Dark Rides

Application: Rides that offer storytelling experiences, such as "Pirates of the Caribbean" and "Waterworld."

How it Works: The chassis of the boats or rail cars that carry guests is often equipped with an air spring system. This system can simulate the rise and fall of waves, the bumps of collisions, and uneven road surfaces, allowing guests to "feel" the story rather than just "see," greatly enhancing their immersion.



Children's and Family Rides

Application: Some gentle spinning cups, Dumbo, and elevators.

How it Works: Air springs utilize the smooth, gentle rise and fall characteristics of air springs to provide a safe and fun up-and-down experience for children and families. Their motion is far more gentle and controllable than traditional mechanical systems.



Safety & Emergency Systems

Application Description: Serves as a locking actuator for safety rails or shoulder restraints, or provides cushioning during emergency stops.

Operating Principle: In the event of an unexpected situation (such as a power outage), the air spring system, relying on the air reservoir to maintain pressure, slowly releases the restraints (rather than instantly), ensuring safe evacuation of passengers and avoiding the risk of mechanical lockup.



W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags 0W01-358-7808 Firestone Industrial Air Spring 3B14-356 Goodyear Crimped convoluted Air Bags 1
