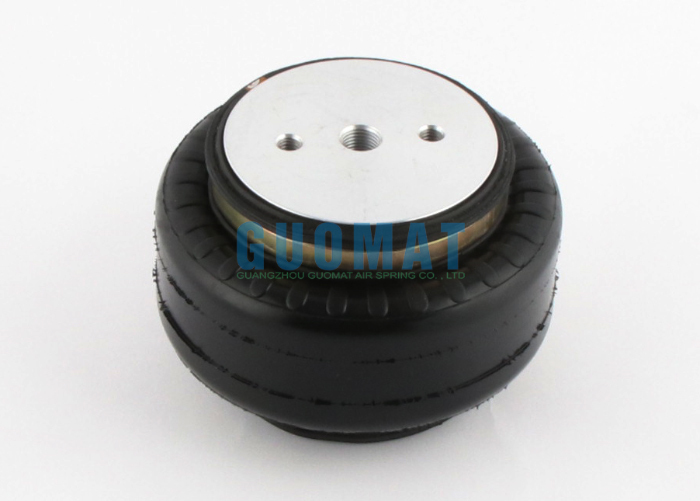

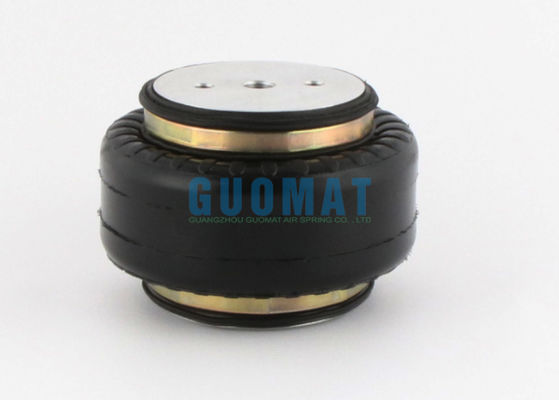

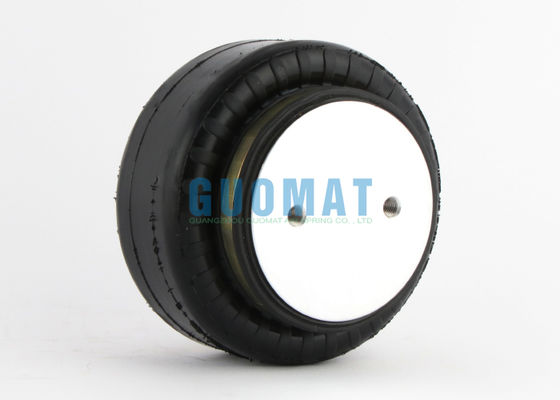

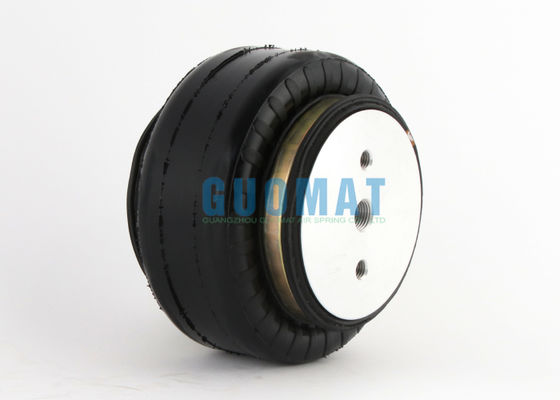

1B5-510 Goodyear Industrial Single Convoluted Air Bags 579-913-501 Cushion Bellows Air Spring

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
شماره مدل:	1B5510

پرداخت:

مقدار حداقل تعداد سفارش:	6 عدد
قیمت:	$49.9-59.9/pc
جزئیات بسته بندی:	جعبه کارتن قوی یا همانطور که مشتریان نیاز دارند
زمان تحویل:	2-8 روز کاری
شرایط پرداخت:	T/T ، Western Union ، L/C
قابلیت ارائه:	1000 قطعه در هفته

مخاطب

توضیحات محصول جزئیات

مادی:	زیر لاستیکی و روکش فولادی	ضمانت:	ضمانت 1 ساله
نمونه:	موجود	عمل:	گاز پر از گاز
بسته بندی کردن:	بسته بندی استاندارد یا سفارشی	گودیر شماره:	1B5-510
شماره دم:	579-913-501	کاربرد:	تجهیزات الکترونیکی/دستگاه های خشک کن بزرگ
برجسته کردن:	Goodyear industrial air spring,single convoluted air bags,air spring cushion bellows , single convoluted air bags , air spring cushion bellows

1B5-510 Goodyear Industrial Single Convoluted Air Bags 579-913-501 Cushion Bellows Air Spring

An industrial air spring is a precision industrial component that uses the compressibility of compressed air to provide elastic support, shock absorption, vibration isolation, and height adjustment. Essentially, it is a flexible airbag made of a high-strength rubber/fabric layer, filled with compressed air, utilizing the unique physical properties of air to achieve its function.

Product Specifications

Brand: GUOMAT
Model Number: 1B5510
Convolutions: 1 (Single)
Type: Convoluted Air Spring
Material: Rubber Bellows, Steel Cover and Steel Hoop
Warranty: 1 Year Warranty

Compatible Part Numbers

GOODYEAR Part Number: 1B5-510
GOODYEAR Part Number: 1B 5-510
GOODYEAR Part Number: 1B5 510
GOODYEAR Part Number: 1B5510
GOODYEAR Bellows Number: 579913501
GOODYEAR Bellows Number: 579 913 501
GOODYEAR Bellows Number: 579-913-501
ENIDINE Part Number: YI1B5-510
ENIDINE Part Number: YI 1B5-510

Technical Data

Air Fitting: 1/4" NPT - On Center

End Plate Dia.: 3.4"

Mounting Holes: (2) 3/8"-16

Mtg. Hole Spacing: 1.75"

Max Height: 4.8"

Bumper: No

Application in Industrial Washing Machines

Aspects	Content and Description
Core Application Equipment	Mainly used in large, high-speed industrial washing machines, such as: Isolation-type washer-extractors: particularly large-capacity models (over 100 kg) Tunnel-type continuous washing machines (tunnel washers): suspension and vibration isolation of each washing chamber Large, fully automatic washer-extractors: modern equipment for hotels, hospitals, and laundries
Core Functions	Highly Efficient Vibration Isolation & Damping: Uses the elastic deformation of compressed air within a flexible rubber bellows to absorb and isolate massive unbalanced forces and violent vibrations generated during the spin cycle. Provides a very low natural frequency, achieving vibration isolation efficiency over 95%. Automatic Leveling & Balancing: Via an integrated height valve or electronic control system, it monitors and adjusts the air pressure in each spring in real-time to keep the machine perfectly level. Protection of Equipment & Infrastructure: Greatly reduces shock and vibration on bearings, seals, and structural components, extending the service life of the entire machine. Enhanced Spin Performance: Excellent damping allows the machine to safely reach a higher spin speed (high G-force), extracting more water and reducing residual moisture content.
Key Advantages	Adjustable Stiffness: The supporting stiffness and natural frequency can be adjusted simply by changing the internal air pressure Effective Isolation: Provides superior isolation, especially for low and medium-frequency vibrations Automatic Balancing: Allows for active leveling during operation High Durability: High-quality rubber materials and robust design ensure long service life and reliability
