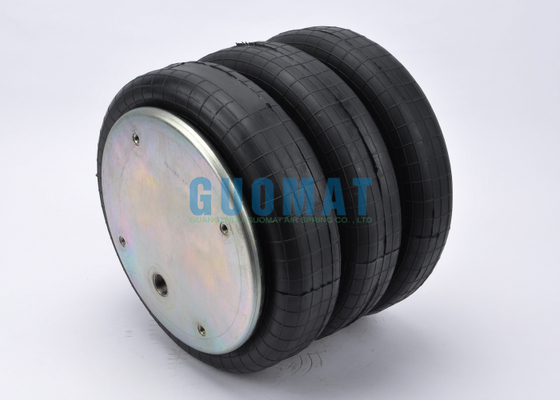

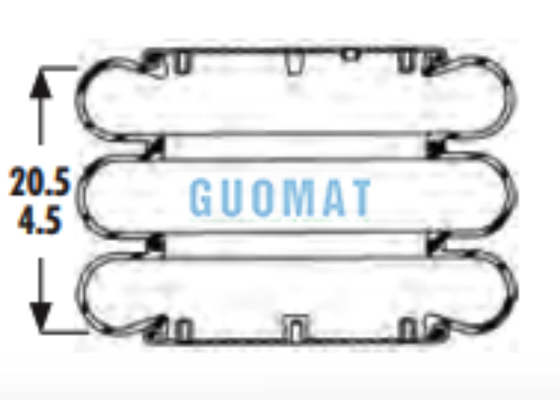

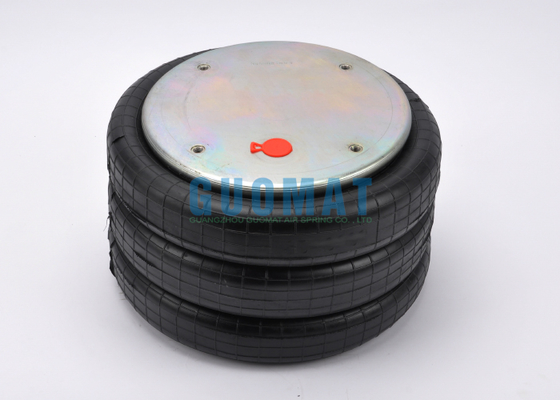

Durable Rubber Air Bellow W01-358-7845 Firestone 3B14-450 Goodyear Air Spring Assembly

Industrial air springs utilize the expandability of compressed air to achieve lifting functions. By adjusting the air pressure, the height and stiffness of the elastic body are altered, thereby supporting or lifting the load. Their core advantages lie in precise control of lifting height, strong load-bearing capacity, and excellent cushioning performance, making them suitable for applications such as heavy equipment positioning and automated production line leveling.

Their structure typically consists of a rubber airbag, upper and lower covers, and an air circuit system, offering fast response times and low energy consumption. They are more flexible and fatigue-resistant than traditional mechanical lifting systems. They require a pressure regulating valve and sensor to ensure stability, and excel in vibration isolation and dynamic load applications, making them an efficient and flexible lifting solution for the industrial sector.

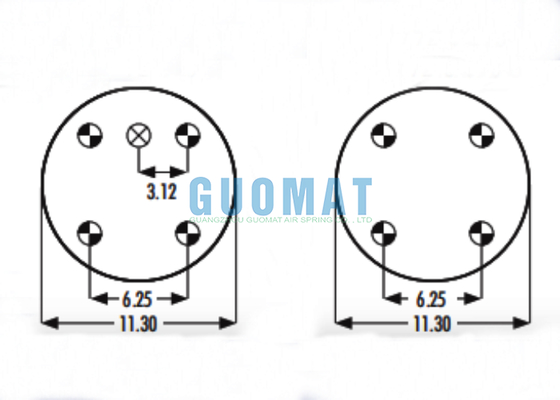

• W01-358-7845: Blind nuts,1/4NPT
• W01-358-7838: Blind nuts,1/4NPT,bumper
• W01-358-7842: Blind nuts,3/4NPT
• W01-358-7849: Blind nuts,3/4NPT,bumper
• W01-358-7830: Countersunk steel bead ring 13/4 bolts,nuts,washers
• W01-358-7019: Rubber bellows only
