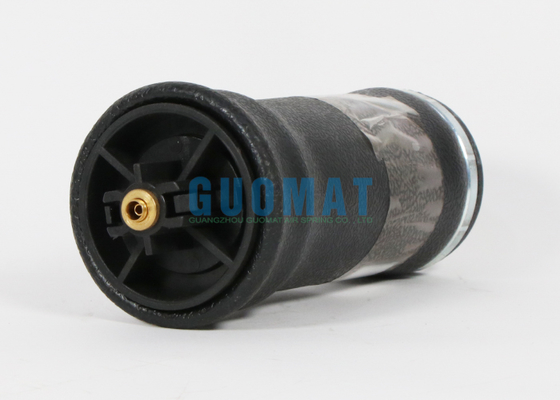

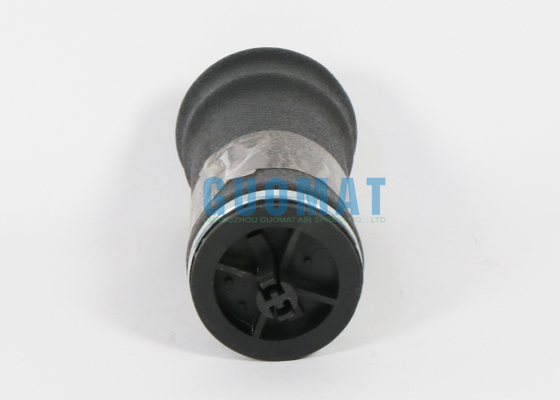

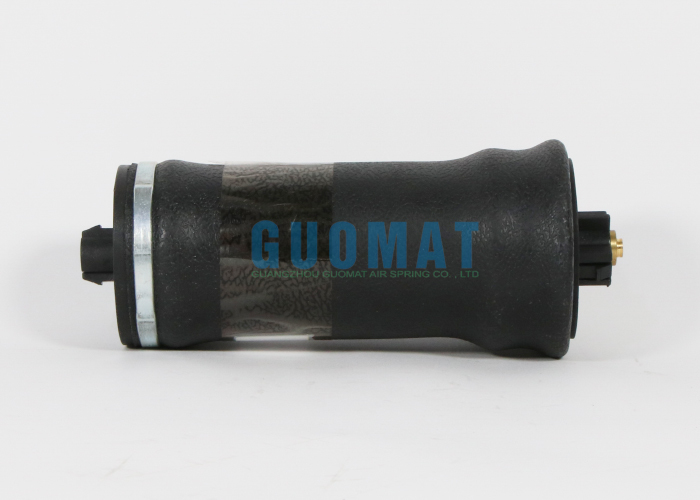

Firestone Sleeve Style Air Shock W02-358-7109 Stud Mount Truck Seat Air Spring

جزئیات محصول:

Place of Origin:	GuangDong, China
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
Model Number:	G7109

پرداخت:

Minimum Order Quantity:	6pcs
قیمت:	$59.9-79.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C, others Negotiation
Supply Ability:	10000pcs/week

مخاطب

توضیحات محصول جزئیات

Item Name:	Cab Air Shock	Material:	Plastic Parts
Warranty:	12 Months	Other Name:	Cab Air Suspension
OEM:	FIRESTONE W02-358-7109	Air Spring Type:	Sleeve Style AirSpring
Condition:	New	Purpose:	For Replace/Repair
برجسته کردن:	Firestone sleeve style air shock,truck seat air spring,stud mount cab air shock , truck seat air spring , stud mount cab air shock

Firestone Sleeve Style Air Shock W02-358-7109 Stud Mount Truck Seat Air Spring

Product Attributes

Attribute	Value
Item Name	Cab Air Shock
Material	Plastic Parts
Warranty	12 Months
Other Name	Cab Air Suspension
OEM	FIRESTONE W02-358-7109
Air Spring Type	Sleeve Style AirSpring
Condition	New
Purpose	For Replace/Repair

Product Specification

OEM No.	FIRESTONE W02-358-7109
Brand	GUOMAT
Model No.	G7109
Truck Model	Universal Truck Trailer
Material	Plastic Parts
Part Name	Shock Absorber
Working temperature	-40°C bis +70°C
Failure testing	≥3 millions

Crosses with: Continental ContiTech SC29-Y109, ContiTech Order # 69624, Automann ABSZ70-7109, Firestone No. W02-358-7109, Firestone Style 7.87" YELLOW, Kenworth AEROCAB (Mid 1999 & later), Kenworth T811000, Link 1102-0077, Link 1104-K002

Firestone No. W02-358-7109
Firestone No. W02 358 7109
Firestone No. W023587109
Firestone No. WO2-358-7109
Firestone No. WO2 358 7109
Firestone No. WO23587109

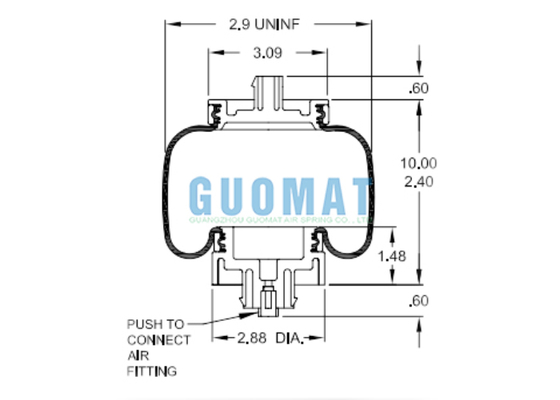

G7109 Cab Air Spring Technical Data

Item	Parameter
Air Spring Type	Sleeve Type
Bottom Mount	Stud
Cap Number	6990, NBD-13706
Piston Number	6894, NBD-14218
Compressed Length	2.4 in (6.09 cm)
Diameter	2.9 in (7.36 cm)
Extended Length	10 in (25.4 cm)
Piston Height	1.48 in (3.76 cm)
Top Mount	Stud
Weight	1 lb (0.45 kg)

Frequently Asked Questions

1. What is a cab air spring?

A cab air spring is an elastic element used in truck cab suspension systems. It uses compressed air to provide support, replacing traditional leaf or coil springs. It effectively reduces vibration, improves driving comfort, and protects the cab structure.

2. What are the core advantages of air springs?

Excellent shock absorption: Reduces the impact of road bumps on the cab, reducing driver fatigue.
Adjustable height: Adjusts the cab height using air pressure to adapt to different road conditions or load requirements.
Extended component life: Reduces vibration damage to the cab and chassis structure.
Lightweight: Lighter than traditional steel springs, helping to reduce fuel consumption.

3. What are the typical symptoms of air spring failure?

Cabin tilt or uneven height
Unusual jerky driving or reduced shock absorption
Airbag deflator (may be accompanied by a hissing sound)
Suspension system warning light illuminates

4. How can I tell if an air spring needs to be replaced?

Visually inspect the airbag for cracks, wear, or leaks.
The cab cannot remain level and continues to sink after adjusting the air pressure.
A decrease in the air pressure maintenance capacity was detected during the vehicle's annual inspection or maintenance.

5. What is the lifespan of an air spring?

It's generally 3-5 years or 200,000-300,000 kilometers. The actual lifespan depends on:

Road conditions (frequent driving on rough roads will shorten the lifespan)
Load conditions (overloading accelerates aging)
Environment (high temperatures and corrosive substances may damage the airbag material)

6. How should air springs be maintained?

Regular inspection: Visually inspect the airbag monthly for damage and leaks.
Clean the surface: Remove dirt, sand, and oil to prevent corrosion.
Avoid overloading: Strictly follow the vehicle's load limit.
Winter precautions: Use a low-temperature-resistant model in extremely cold regions to prevent the rubber from becoming brittle.

7. What adjustments are required after installation?

Inflate to the manufacturer's recommended pressure (refer to the vehicle manual).
Test the cab lift function for proper operation.
Perform a road test to check the shock absorption and any unusual noises.

8. What are the emergency procedures for an air spring leak?

If the leak is minor, temporarily inflate to a safe pressure and drive at a low speed to a repair station. If the leak is severe, the vehicle must be towed to avoid damage to other components.
