Replace FD40-10 Contitech Industrial Air Bellows 2B4060 GUOMAT Rubber Air Spring Bags

جزئیات محصول:

Place of Origin:	Guangzhou,China
نام تجاری:	GUOMAT
گواهی:	ISO/TS16949:2009
Model Number:	2B4060

پرداخت:

Minimum Order Quantity:	5pcs
قیمت:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

مخاطب

توضیحات محصول جزئیات

Model:	Rubber Air Spring For Industrial	Brand:	GUOMAT or Neutral
Sample:	Available	HS Code:	8708809000
Warranty:	1 Year	Type:	Gas-Filled
Part Number:	2B4060	Cross:	Contitech FD 40-10
برجسته کردن:	Contitech industrial air spring bellow,GUOMAT rubber air spring bag,FD40-10 replacement air spring , GUOMAT rubber air spring bag , FD40-10 replacement air spring

Replace FD40-10 Contitech Industrial Air Bellows 2B4060 GUOMAT Rubber Air Spring Bags

Product Specifications

Model	Rubber Air Spring For Industrial
Brand	GUOMAT or Neutral
Sample	Available
HS Code	8708809000
Warranty	1 Year
Type	Gas-Filled
Part Number	2B4060
Cross	Contitech FD 40-10

Product Details

Item	Industrial Air Spring
Model No.	2B4060
Brand	GUOMAT
Suitable Machine	Web Tensioning Device, Carton Making Machine, Large Drying Machines
Bellow Material	Natural Rubber
MOQ	1 pcs if we have stock
Package	Brown Carton
Other Shipping	By Air, By Sea, By Express (FedEx, UPS, DHL)

Compatible OEM Numbers

Contitech FD40-10
Contitech FD 40-10
Contitech FD40-10 CI
Contitech FD 40-10 CI
Contitech FD40-10 CI G1/8
Contitech FD 40-10 CI G1/8
Contitech FD40-10 CI G1/8 I 108746
Contitech FD 40-10 CI G1/8 I 108746

Technical Specifications

Top Cover Plate Diameter: 90mm

Bottom Cover Plate Diameter: 90mm

Gas Hole / Air inlet: G1/8

Rubber Bellows Natural Diameter: 125mm

The Natural Height: 145mm

Top Cover Plate Screw (Nut) Tooth: 2XM8X1.25

Bottom Cover Plate Screw (Nut) Tooth: 2XM8X1.25

Screw Center Distance of Bottom Cover Plate: 20mm

Screw And Gas Hole Distance of Top Cover Plate: 20mm

Industrial Applications in Commercial Laundry Equipment

Vibration Absorption and Sound Isolation: Reduces vibration transmission and noise by 10-15 decibels, ideal for hospitals and hotels.
Adaptive Load Balancing: Automatically adjusts air pressure to accommodate varying loads, preventing mechanical failures.
Protecting Equipment and Extending Lifespan: Isolates high-frequency vibrations, reducing fatigue damage to components.
Adapting to Complex Installation Environments: Compensates for uneven floors and provides stability for mobile equipment.

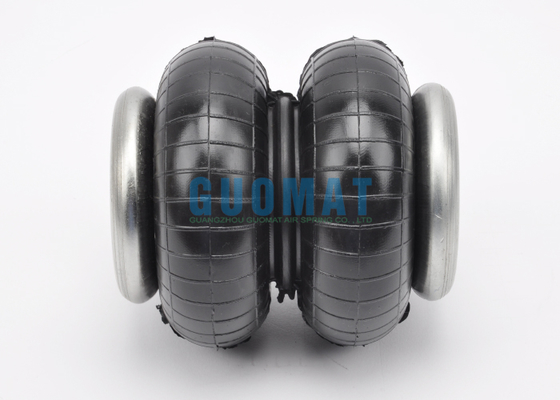

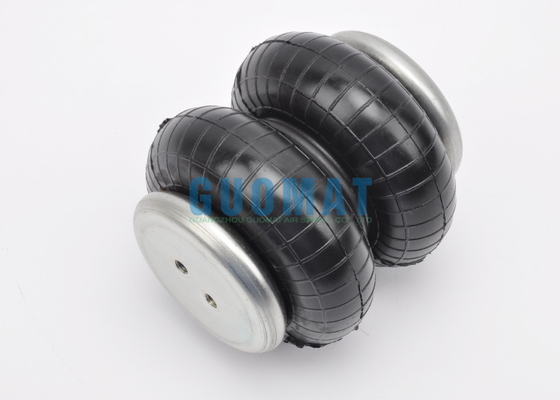

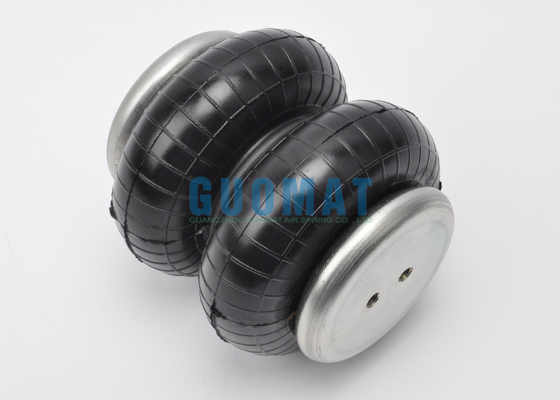

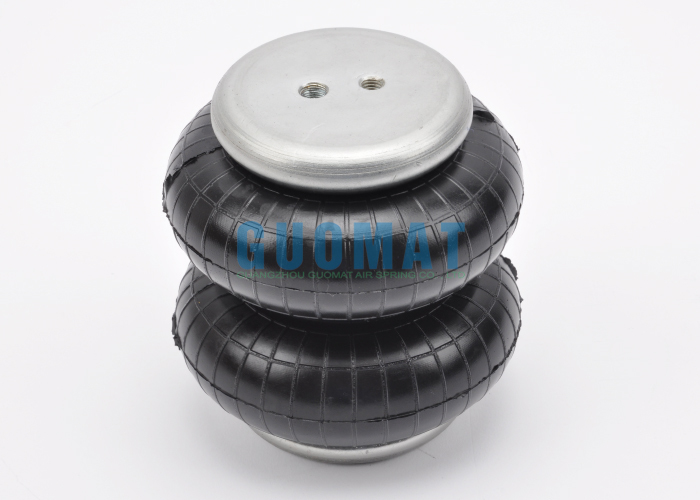

Product Images
